With a strong focus on the agronomy of corn, MacDon C Series headers provide industry-leading residue management. In a one-pass process MacDon's OctiRoll™ Residue Management System creates well conditioned/chopped and evenly distributed residue, necessary for achieving accurate seed depth and seed placement essential for maximizing successive crop yields.

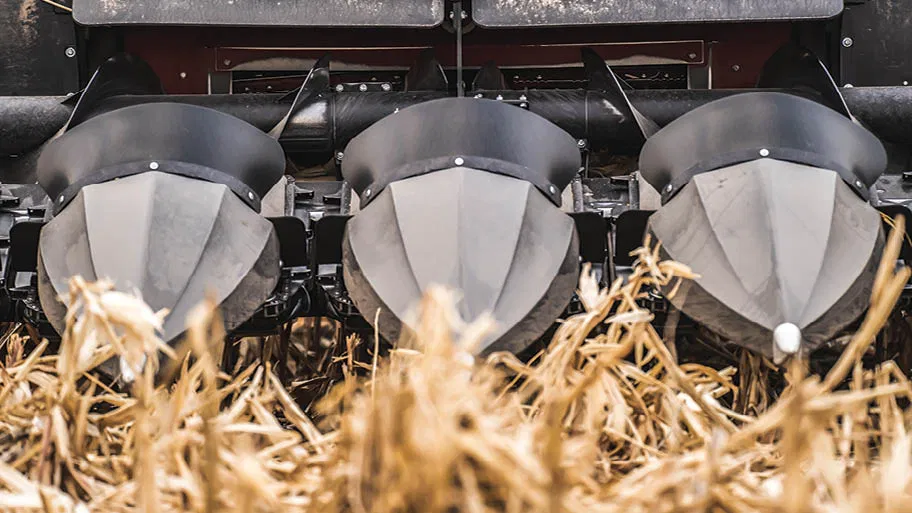

The ribbed shape strengthens the snout structure and creates less drag allowing the material to flow over it smoothly. Featuring a unique teardrop snout design that excels at lifting downed crop, minimizing ear bounce, and following curved rows, the MacDon C Series is ready for your toughest corn harvesting challenges.

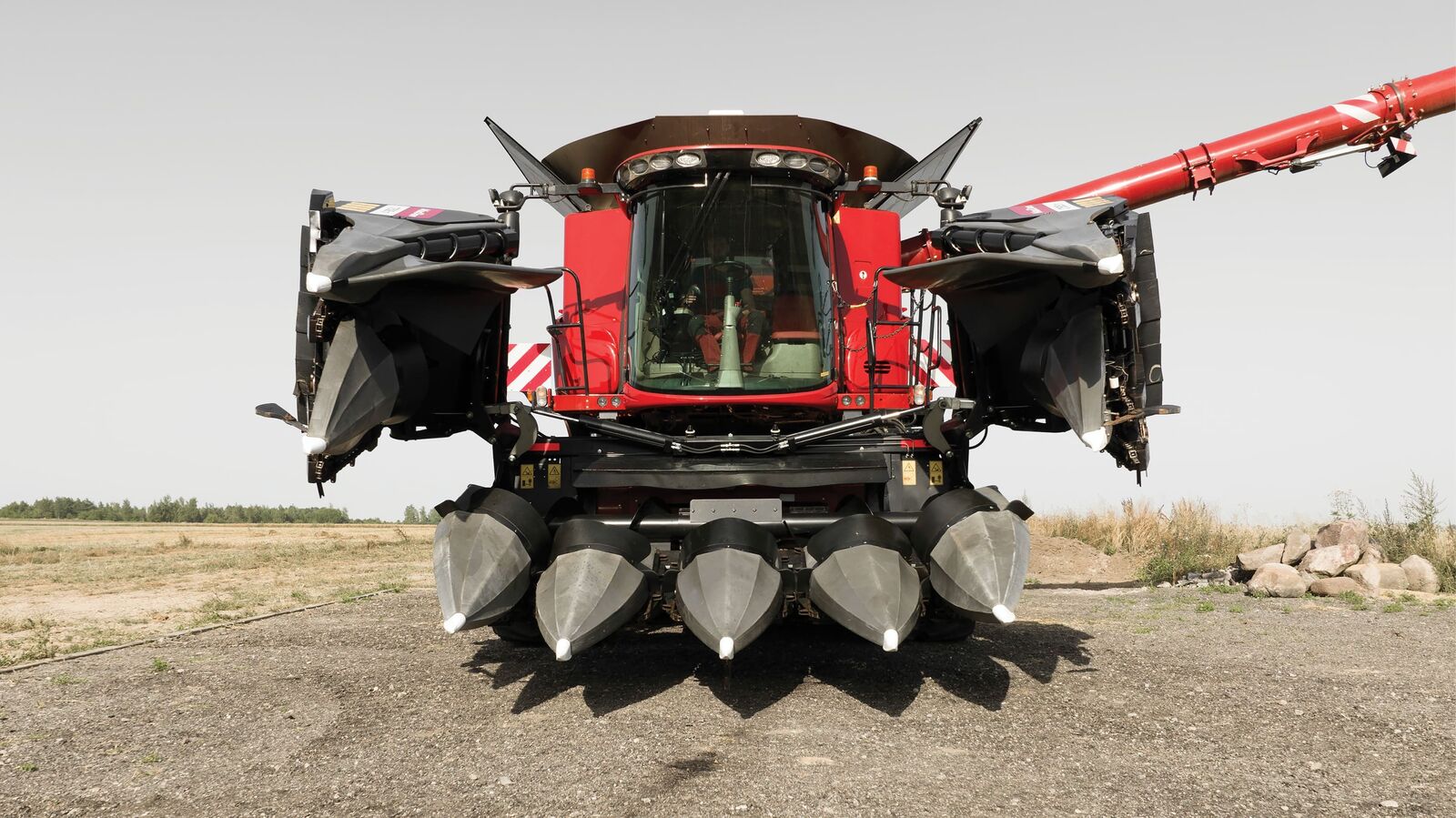

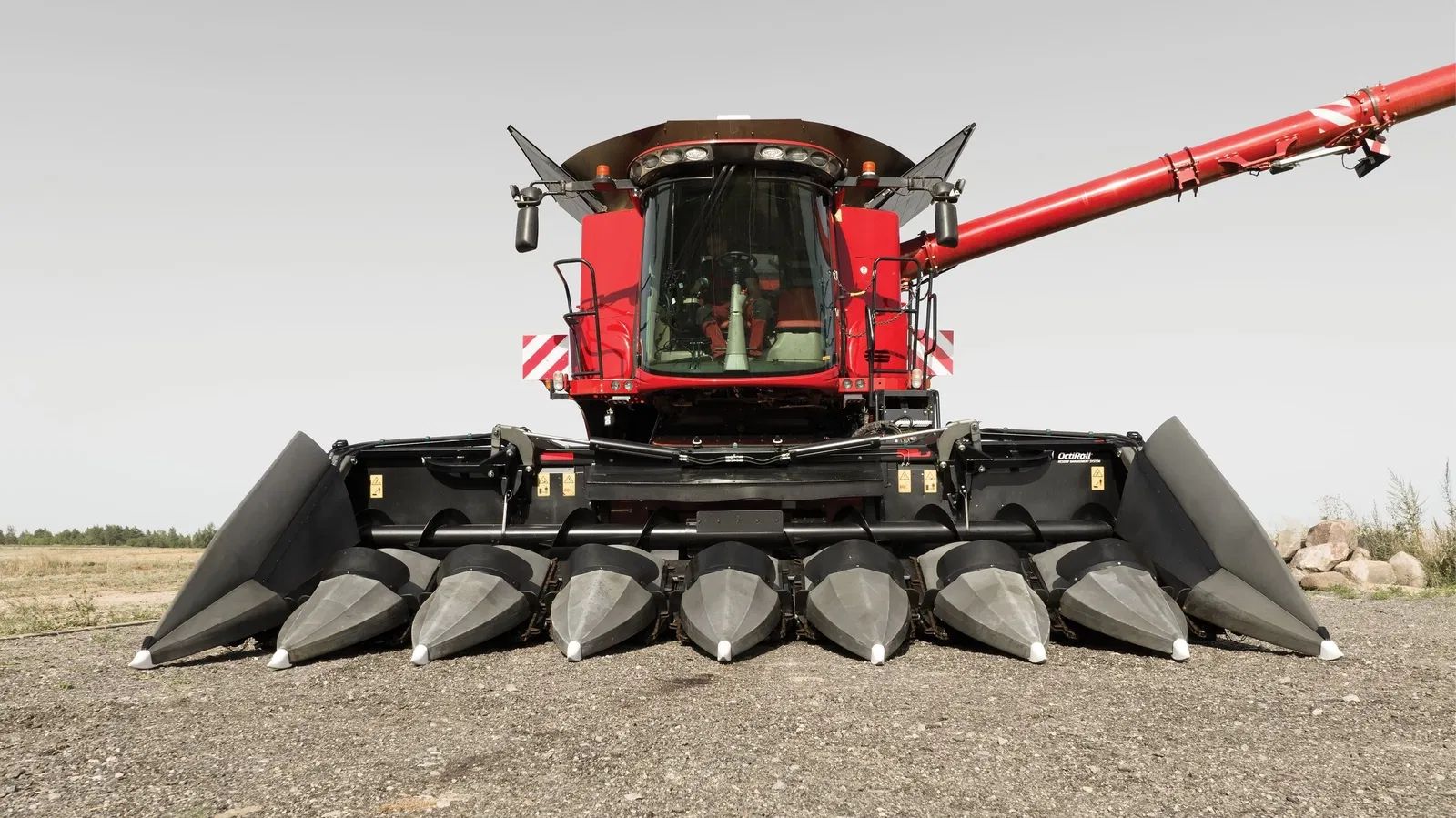

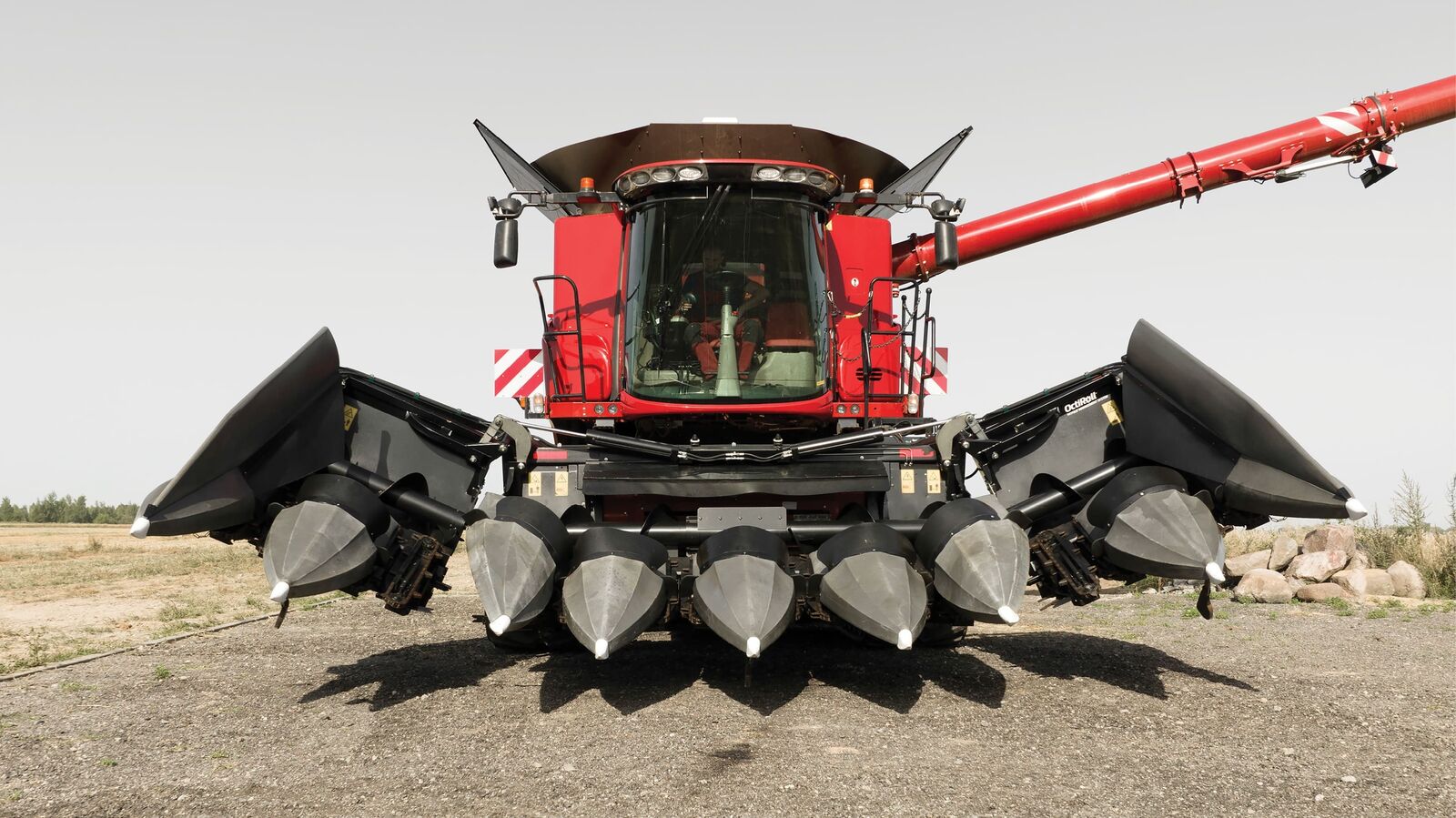

Folding headers let you travel with ease from field-to-field during harvest. Go from full width to completely folded in less than two minutes; the folding operates with push-button simplicity from the combine's cab.
MacDon's OctiRoll™ Residue Management System features 4 point-to-point knives and 4 additional serrated edges on each OctiRoll™. This feature creates more pinch points on the stalk per revolution of the roll, resulting in less trash intake, stalk slippage, and allows for a more thorough stalk cut, crimping, and chopping process.Chopper models feature aluminum stalk chopper gearboxes with large oil volumes to help prevent overheating.The optimized position of the chopping knives relative to the snapping rolls ensures excellent chopping qualityeven at harvesting speeds up to 7.5 mph (12 km/h).Knives can be reversed when the front edge wears to prolong life & reduce operational costs
The rotary end divider option helps to pick up downed corn.

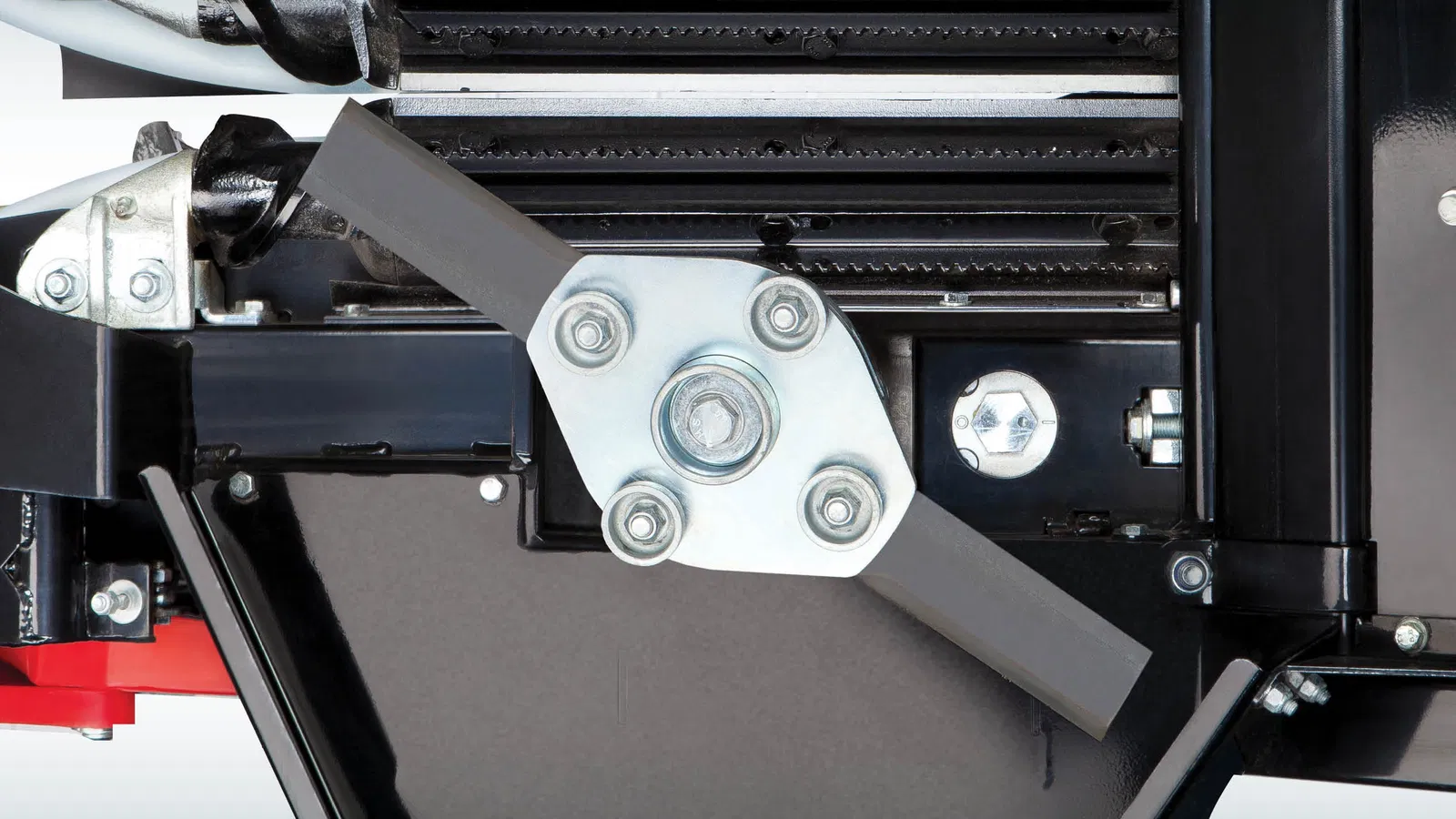

The front-mounted chopper positioned close to the underside of the rolls provides the shortest, most consistent residue size. The OctiRolls can then be run closer to the ground to better harvest downed corn while delivering the shortest stubble height possible.You'll enjoy the direct positive drive from the specially designed high-capacity aluminum gearbox and slip clutch that powers each row unit. Chopper speed is 2800 RPM, and the chopper gearboxes can be easily disconnected row by row as needed.

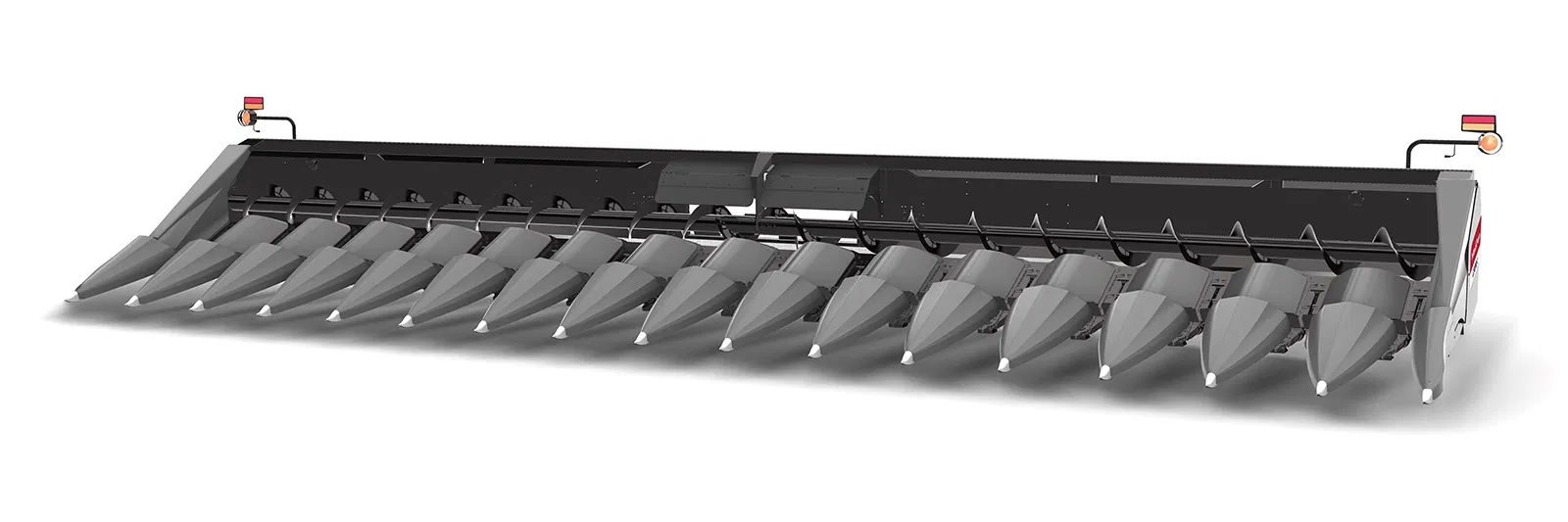

MacDon C Series Headers are designed to fit most major brand combines with an easy to install completion package. This multi-brand compatibility and interchangeability mean your investment will hold its value when it's time to update your header.
A light yet robust frame structure and row units reduce weight.The reduced frame weight, high-performance OctiRolls, aluminum gearboxes and compact driveline require less power from the combine resulting in reduced fuel consumption.
The stubble stomper option helps reduce wear and tear on your tires or tracks.

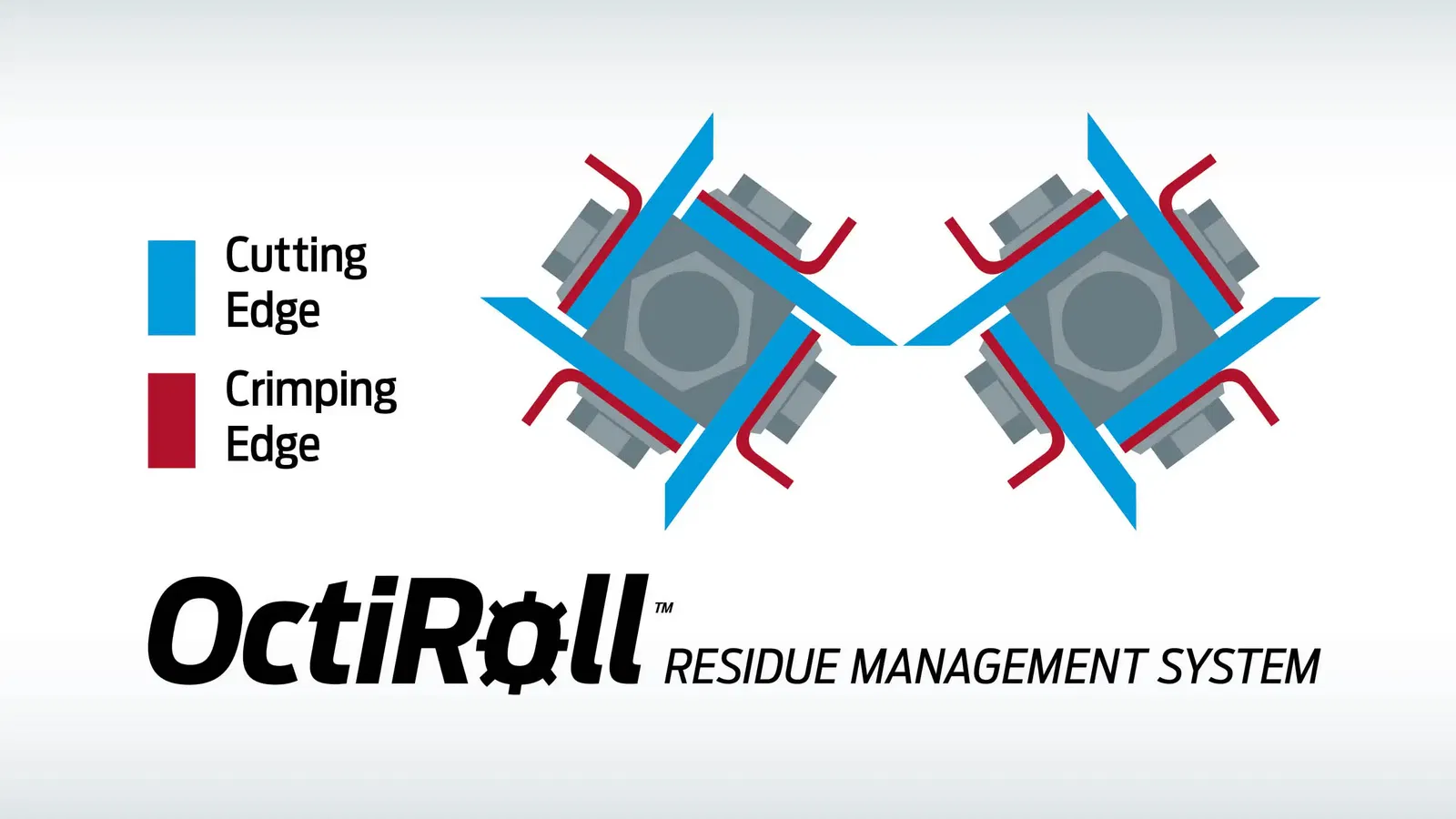

C Series Corn Headers feature MacDon's innovative OctiRoll™. Improving on the traditional snapping roll model, this unique industry-leading design incorporates 4 point-to-point knives and 4 serrated edges, that alternate to cut and crimp the stalk every 3 inches. The OctiRoll™ cutting/crimping action speeds up the microbial breakdown process, taking less than half the time to decompose over typical corn headers.

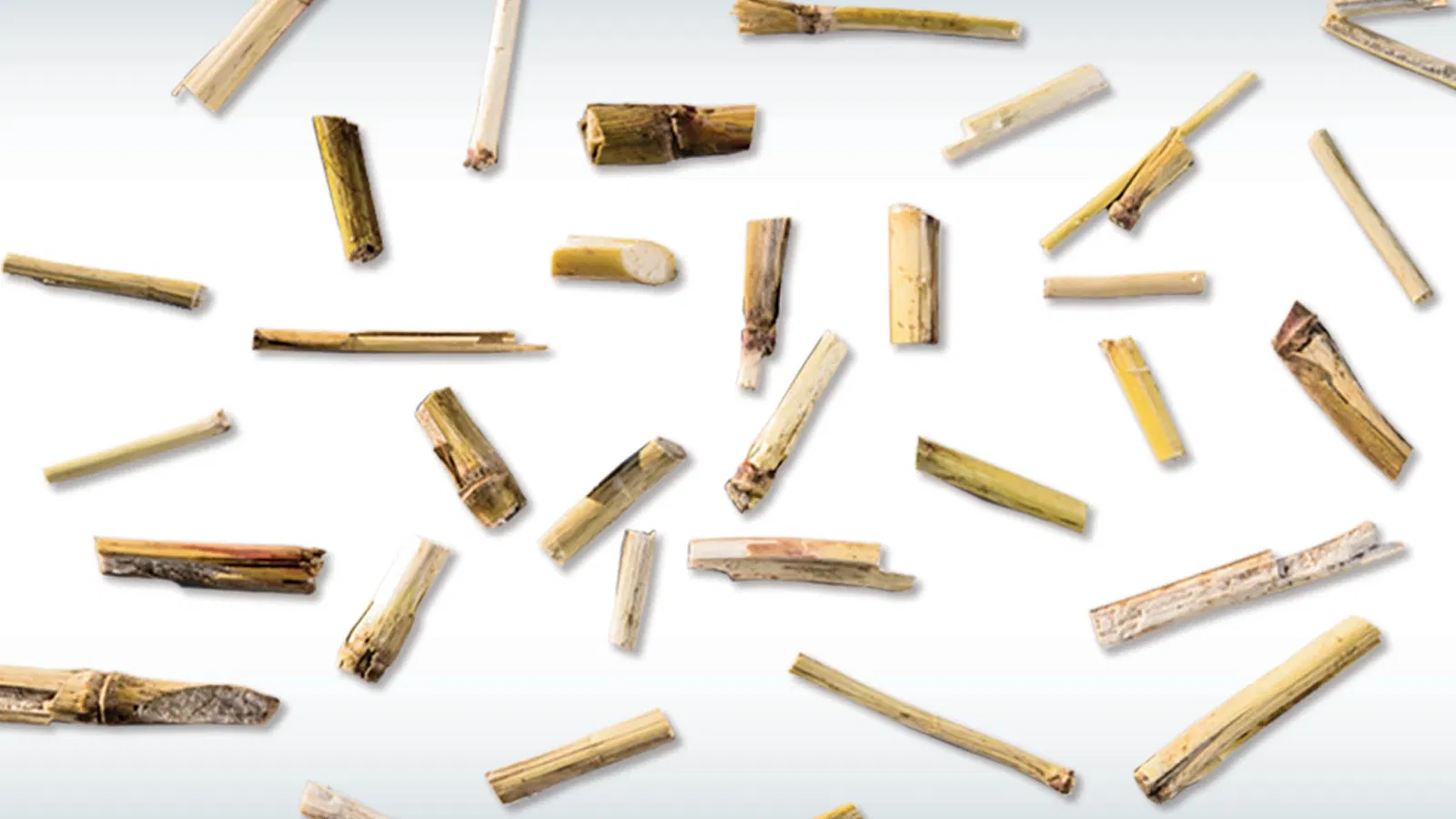

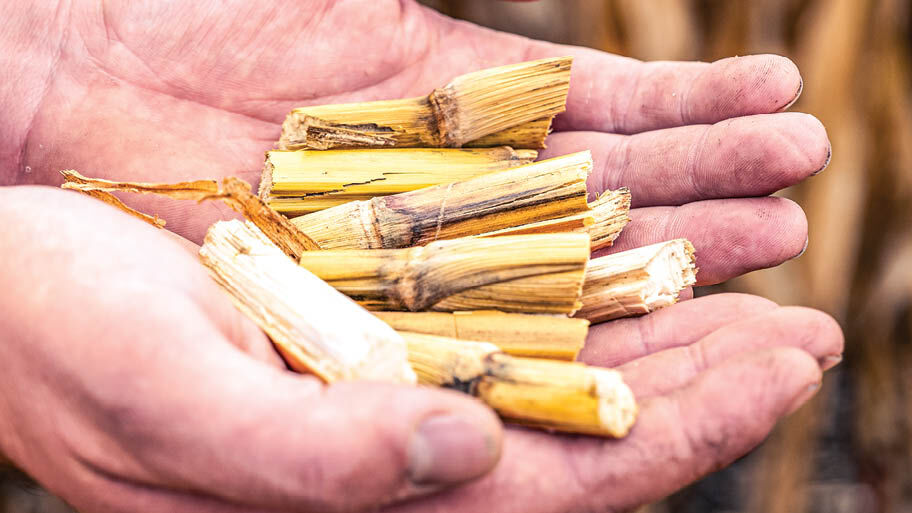

Stalks are aggressively pulled through the header and residue is consistently chopped into 2 to 3-inch pieces at harvesting speeds up to 7.5 mph (12 km/h) thanks to the extra 4 serrated blades on each OctiRoll™.
Strong, light, and fuel-efficient, C Series headers have aluminum gearboxes and a compact driveline requiring less power from the combine for operation. Featuring a unique snout design that excels at lifting downed crop, minimizing ear bounce, and following curved rows, the MacDon C Series is ready for your toughest corn harvesting challenges.
Each front-supported OctiRoll™ uses two sealed double row ball bearings. The grease in the cavity forms a barrier to prevent dirt & debris from contacting the bearing seal. The greasing interval is weekly or every 50 hours of operation.
The high-performance OctiRolls feature 4 hardened carbide knives bolted to each roll shaft for easy replacement.The gathering chain drive sprockets feature a unique tooth profile that protects the gathering chain should the chain meet an obstruction; this also helps to protect the row unit driveline.
Grey snouts and dividers are offered as standard equipment, however, red, green, and yellow are available as a special factory order to match your combine color.
In this video, Quinn walks you through how to adjust your snapping plates to ensure the gap is to specification. This process applies to both C Series Corn Headers and FC Series FlexCorn™ Corn Headers
OctiRoll™ - One Pass Residue Management
Optimal Stalk to Chopper Positioning
Unique Snout Design - Excels at Lifting Downed Crop
Strong, Light, Fuel-Efficient
One-Pass Residue ManagementWith a strong focus on the agronomy of corn, MacDon C Series headers provide industry-leading residue management. In a one-pass process MacDon's OctiRoll™ Residue Management System creates well conditioned/chopped and evenly distributed residue, necessary for achieving accurate seed depth and seed placement essential for maximizing successive crop yields.
Unique Snout DesignThe ribbed shape strengthens the snout structure and creates less drag allowing the material to flow over it smoothly. Featuring a unique teardrop snout design that excels at lifting downed crop, minimizing ear bounce, and following curved rows, the MacDon C Series is ready for your toughest corn harvesting challenges.
Folding Corn HeadersFolding headers let you travel with ease from field-to-field during harvest. Go from full width to completely folded in less than two minutes; the folding operates with push-button simplicity from the combine's cab.
Serious Cutting Performance & InnovationMacDon's OctiRoll™ Residue Management System features 4 point-to-point knives and 4 additional serrated edges on each OctiRoll™. This feature creates more pinch points on the stalk per revolution of the roll, resulting in less trash intake, stalk slippage, and allows for a more thorough stalk cut, crimping, and chopping process.Chopper models feature aluminum stalk chopper gearboxes with large oil volumes to help prevent overheating.The optimized position of the chopping knives relative to the snapping rolls ensures excellent chopping qualityeven at harvesting speeds up to 7.5 mph (12 km/h).Knives can be reversed when the front edge wears to prolong life & reduce operational costs
Rotary End DividersThe rotary end divider option helps to pick up downed corn.
Optimal Stalk To Chopper PositioningThe front-mounted chopper positioned close to the underside of the rolls provides the shortest, most consistent residue size. The OctiRolls can then be run closer to the ground to better harvest downed corn while delivering the shortest stubble height possible.You'll enjoy the direct positive drive from the specially designed high-capacity aluminum gearbox and slip clutch that powers each row unit. Chopper speed is 2800 RPM, and the chopper gearboxes can be easily disconnected row by row as needed.
Combine InterchangeabilityMacDon C Series Headers are designed to fit most major brand combines with an easy to install completion package. This multi-brand compatibility and interchangeability mean your investment will hold its value when it's time to update your header.
Strong, Light, and Fuel EfficientA light yet robust frame structure and row units reduce weight.The reduced frame weight, high-performance OctiRolls, aluminum gearboxes and compact driveline require less power from the combine resulting in reduced fuel consumption.
More Advantages
Strong, Light, and Fuel Efficient
Easy Maintenance
Built Tough for Increased Harvesting Up-Time
Combine Interchangeability
Folding Corn Headers
Colored Snouts & Dividers
Rotary End Dividers
Stubble Stompers
