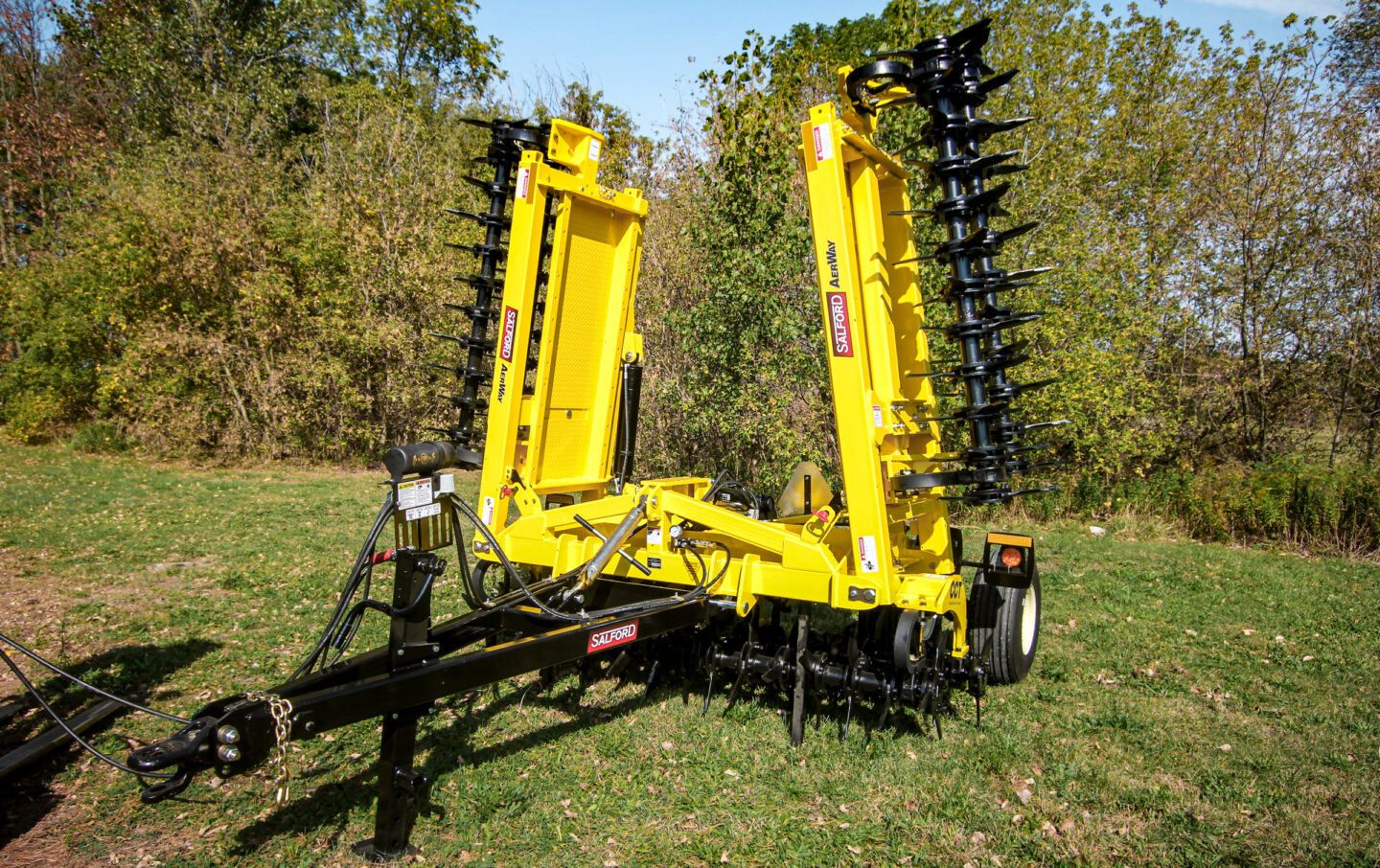

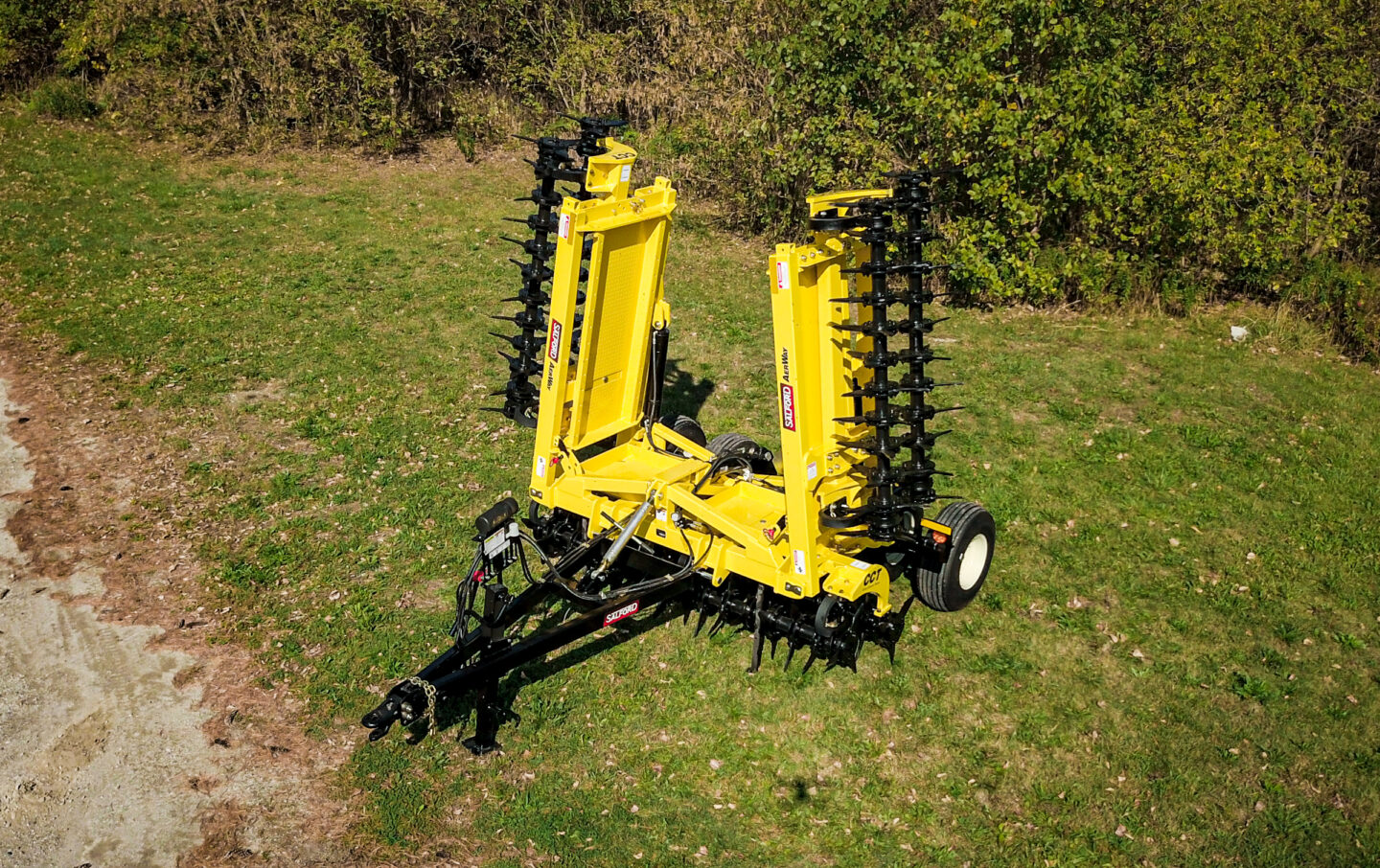

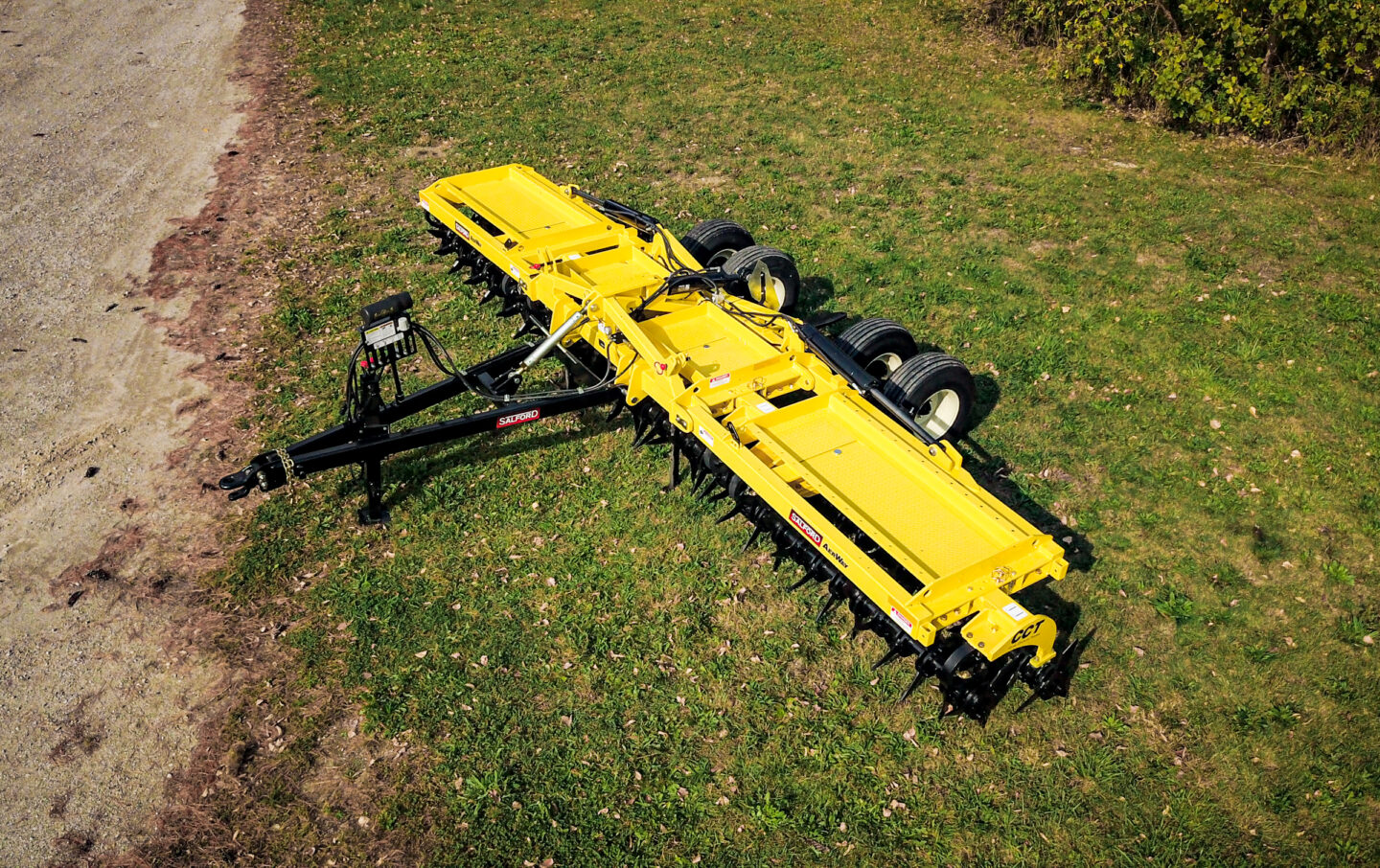

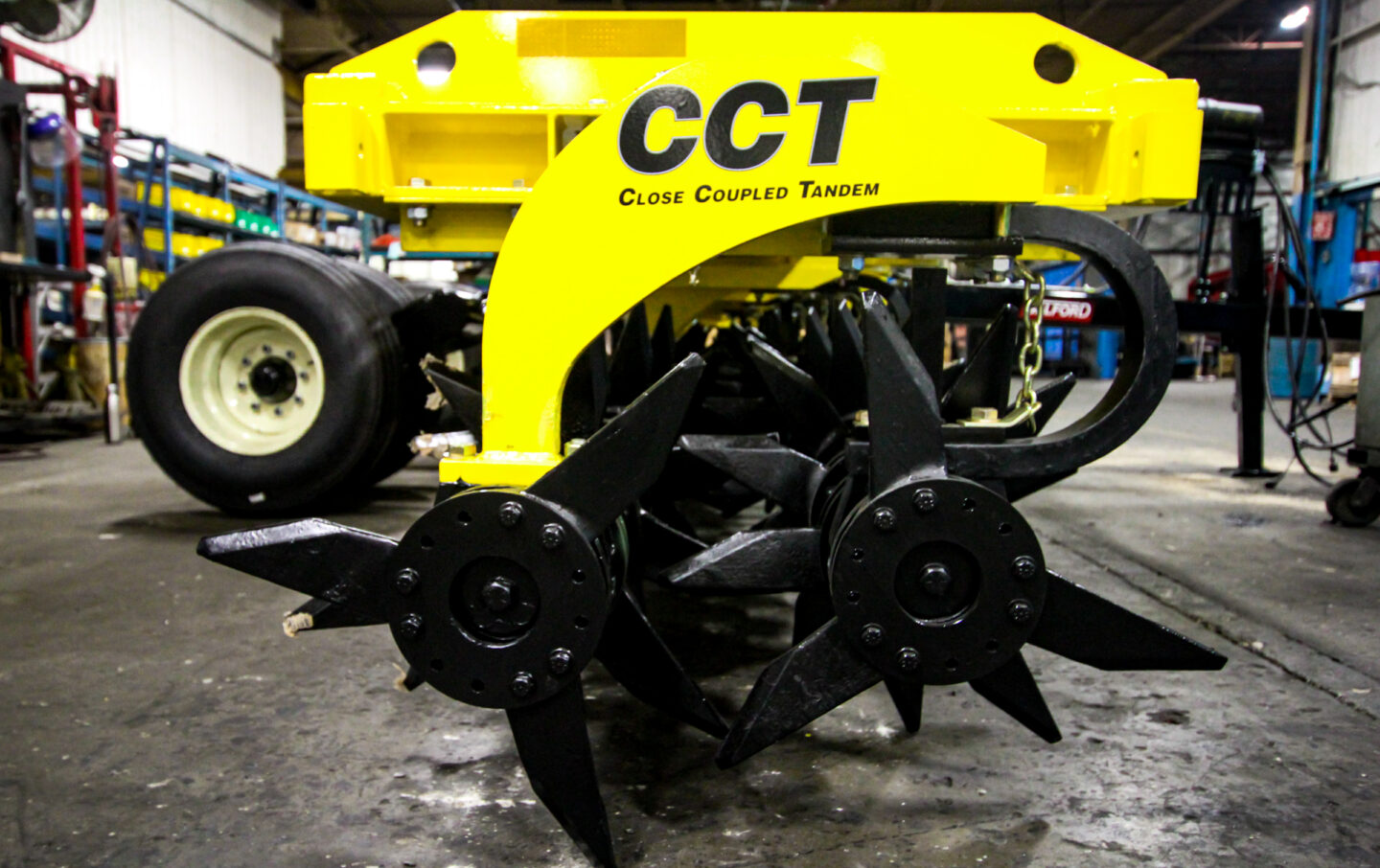

Model & Size 12.5 ft Straight Frame 15 ft Straight Frame 20 ft Straight Frame 20 ft Folding Frame 25 ft Folding Frame 30 ft Folding Frame 40 ft Folding Frame Front row(s) ground engaging equipment (description) Forged ShatterTines (Leaf Tines Optional) Forged ShatterTines (Leaf Tines Optional) Forged ShatterTines (Leaf Tines Optional) Forged ShatterTines (Leaf Tines Optional) Forged ShatterTines (Leaf Tines Optional) Forged ShatterTines (Leaf Tines Optional) Forged ShatterTines (Leaf Tines Optional) Front row(s) ground engaging equipment (quantity) 3 Tines per Row 3 Tines per Row 3 Tines per Row 3 Tines per Row 3 Tines per Row 3 Tines per Row 3 Tines per Row Front row(s) equipment quantity 60 72 96 96 120 144 192 Front row(s) equipment mount C-Flex Suspension Mount C-Flex Suspension Mount C-Flex Suspension Mount C-Flex Suspension Mount C-Flex Suspension Mount C-Flex Suspension Mount C-Flex Suspension Mount Equipment spacing, in (mm) 3.75 in (effective) (95.25 mm) 3.75 in or 5 in (effective) (92.25-127 mm) 3.75 in or 5 in (effective) (92.25-127 mm) 3.75 in or 5 in (effective) (92.25-127 mm) 3.75 in or 5 in (effective) (92.25-127 mm) 3.75 in or 5 in (effective) (92.25-127 mm) 3.75 in or 5 in (effective) (92.25-127 mm) Equipment size, in (mm) 8 in (203.2 mm) 8 in (203.2 mm) 8 in (203.2 mm) 8 in (203.2 mm) 8 in (203.2 mm) 8 in (203.2 mm) 8 in (203.2 mm) Angle 2.5°, 5°, or 7.5° 2.5°, 5°, or 7.5° 2.5°, 5°, or 7.5° 2.5°, 5°, or 7.5° 2.5°, 5°, or 7.5° 2.5°, 5°, or 7.5° 2.5°, 5°, or 7.5° Bearings Maintenance Free Trunnion Bearing Maintenance Free Trunnion Bearing Maintenance Free Trunnion Bearing Maintenance Free Trunnion Bearing Maintenance Free Trunnion Bearing Maintenance Free Trunnion Bearing Maintenance Free Trunnion Bearing
Model & Size 12.5 ft Straight Frame 15 ft Straight Frame 20 ft Straight Frame 20 ft Folding Frame 25 ft Folding Frame 30 ft Folding Frame 40 ft Folding Frame Rear row(s) ground engaging equipment (description) Forged ShatterTines (Leaf Tines Optional) Forged ShatterTines (Leaf Tines Optional) Forged ShatterTines (Leaf Tines Optional) Forged ShatterTines (Leaf Tines Optional) Forged ShatterTines (Leaf Tines Optional) Forged ShatterTines (Leaf Tines Optional) Forged ShatterTines (Leaf Tines Optional) Rear row(s) ground engaging equipment (quantity) 3 Tines per Row 3 Tines per Row 3 Tines per Row 3 Tines per Row 3 Tines per Row 3 Tines per Row 3 Tines per Row Rear row(s) equipment quantity 60 72 96 96 120 144 192 Rear row(s) equipment mount C-Flex Suspension Mount C-Flex Suspension Mount C-Flex Suspension Mount C-Flex Suspension Mount C-Flex Suspension Mount C-Flex Suspension Mount C-Flex Suspension Mount Equipment spacing, in (mm) 3.75 in (effective) (95.25 mm) 3.75 in or 5 in (effective) (92.25-127 mm) 3.75 in or 5 in (effective) (92.25-127 mm) 3.75 in or 5 in (effective) (92.25-127 mm) 3.75 in or 5 in (effective) (92.25-127 mm) 3.75 in or 5 in (effective) (92.25-127 mm) 3.75 in or 5 in (effective) (92.25-127 mm) Equipment size, in (mm) 8 in (203.2 mm) 8 in (203.2 mm) 8 in (203.2 mm) 8 in (203.2 mm) 8 in (203.2 mm) 8 in (203.2 mm) 8 in (203.2 mm) Angle 2.5°, 5°, or 7.5° 2.5°, 5°, or 7.5° 2.5°, 5°, or 7.5° 2.5°, 5°, or 7.5° 2.5°, 5°, or 7.5° 2.5°, 5°, or 7.5° 2.5°, 5°, or 7.5° Bearings Maintenance Free Trunnion Bearing Maintenance Free Trunnion Bearing Maintenance Free Trunnion Bearing Maintenance Free Trunnion Bearing Maintenance Free Trunnion Bearing Maintenance Free Trunnion Bearing Maintenance Free Trunnion Bearing
Model & Size 12.5 ft Straight Frame 15 ft Straight Frame 20 ft Straight Frame 20 ft Folding Frame 25 ft Folding Frame 30 ft Folding Frame 40 ft Folding Frame Transport wheel mounting 6-bolt 6-bolt 8-bolt 8-bolt 8-bolt 8-bolt 10-bolt Transport tires 9.5 x 15TL Tires 9.5 x 15TL Tires 12.5 x 16TL TIres 12.5 x 16TL Tires 340/60R16.5 Tires 340/60R16.5 Tires 550/60-22.5 Tires Wing wheel mounting N/A N/A N/A N/A N/A N/A N/A Wing tires N/A N/A N/A N/A N/A N/A N/A Gauge wheel mounting N/A N/A N/A N/A N/A N/A N/A Guage wheel tires N/A N/A N/A N/A N/A N/A N/A
Model & Size 12.5 ft Straight Frame 15 ft Straight Frame 20 ft Straight Frame 20 ft Folding Frame 25 ft Folding Frame 30 ft Folding Frame 40 ft Folding Frame Hookup to tractor, mounted or pull-type CAT 3 std ( CAT 4 optional), Pull-Type CAT 3 std ( CAT 4 optional), Pull-Type CAT 3 std ( CAT 4 optional), Pull-Type CAT 3 std ( CAT 4 optional), Pull-Type CAT 3 std ( CAT 4 optional), Pull-Type CAT 3 std ( CAT 4 optional), Pull-Type CAT 4/5, Pull-Type
Model & Size 12.5 ft Straight Frame 15 ft Straight Frame 20 ft Straight Frame 20 ft Folding Frame 25 ft Folding Frame 30 ft Folding Frame 40 ft Folding Frame Typical operating depth, in (mm) Up to 8 in (203.2 mm) Up to 8 in (203.2 mm) Up to 8 in (203.2 mm) Up to 8 in (203.2 mm) Up to 8 in (203.2 mm) Up to 8 in (203.2 mm) Up to 8 in (203.2 mm) Operating speed (mph) 7-10 mph (11.27-16.09 kph) 7-10 mph (11.27-16.09 kph) 7-10 mph (11.27-16.09 kph) 7-10 mph (11.27-16.09 kph) 7-10 mph (11.27-16.09 kph) 7-10 mph (11.27-16.09 kph) 7-10 mph (11.27-16.09 kph) Depth control - - - - - - - Fore/aft leveling - - - - - - -
Model & Size 12.5 ft Straight Frame 15 ft Straight Frame 20 ft Straight Frame 20 ft Folding Frame 25 ft Folding Frame 30 ft Folding Frame 40 ft Folding Frame Required power, hp (kw) 137.5 - 175 hp (107.52 - 130.50 k) 165 - 210 hp (123.04 - 156.60 kW) 220 - 280 hp (164.05 - 208.80 kW) 220 - 280 hp (164.05 - 208.80 kW) 275 - 350 hp (205.07 - 262.00 kW) 330 - 420 hp (246.08 - 313.19 kW) 440 - 560 hp (328.11 - 417.59 kW) Remote Hydraulic Values required - - - 1 1 1 2 Hydraulic Pressure - - - - - - -
Model & Size 12.5 ft Straight Frame 15 ft Straight Frame 20 ft Straight Frame 20 ft Folding Frame 25 ft Folding Frame 30 ft Folding Frame 40 ft Folding Frame Option 1 3 bar coil tine and single 14" roller 3 bar coil tine and single 14" roller 3 bar coil tine and single 14" roller 3 bar coil tine and single 14" roller 3 bar coil tine and single 14" roller 3 bar coil tine and single 14" roller 3 bar coil tine and single 14" roller Option 2 Double 14" rollers Double 14" rollers Double 14" rollers Double 14" roller Double 14" rollers Double 14" rollers Double 14" rollers Option 3 - - - - - - - Option 4 - - - - - - - Equipment Options - - - - - - -
12.5 ft Straight Frame 15 ft Straight Frame 20 ft Straight Frame 20 ft Folding Frame 25 ft Folding Frame 30 ft Folding Frame 40 ft Folding Frame
Model & Size 12.5 ft Straight Frame Front row(s) ground engaging equipment (description) Forged ShatterTines (Leaf Tines Optional) Front row(s) ground engaging equipment (quantity) 3 Tines per Row Front row(s) equipment quantity 60 Front row(s) equipment mount C-Flex Suspension Mount Equipment spacing, in (mm) 3.75 in (effective) (95.25 mm) Equipment size, in (mm) 8 in (203.2 mm) Angle 2.5°, 5°, or 7.5° Bearings Maintenance Free Trunnion Bearing
Model & Size 12.5 ft Straight Frame Rear row(s) ground engaging equipment (description) Forged ShatterTines (Leaf Tines Optional) Rear row(s) ground engaging equipment (quantity) 3 Tines per Row Rear row(s) equipment quantity 60 Rear row(s) equipment mount C-Flex Suspension Mount Equipment spacing, in (mm) 3.75 in (effective) (95.25 mm) Equipment size, in (mm) 8 in (203.2 mm) Angle 2.5°, 5°, or 7.5° Bearings Maintenance Free Trunnion Bearing
Model & Size 12.5 ft Straight Frame Transport wheel mounting 6-bolt Transport tires 9.5 x 15TL Tires Wing wheel mounting N/A Wing tires N/A Gauge wheel mounting N/A Guage wheel tires N/A
Model & Size 12.5 ft Straight Frame Hookup to tractor, mounted or pull-type CAT 3 std ( CAT 4 optional), Pull-Type
Model & Size 12.5 ft Straight Frame Typical operating depth, in (mm) Up to 8 in (203.2 mm) Operating speed (mph) 7-10 mph (11.27-16.09 kph) Depth control - Fore/aft leveling -
Model & Size 12.5 ft Straight Frame Required power, hp (kw) 137.5 - 175 hp (107.52 - 130.50 k) Remote Hydraulic Values required - Hydraulic Pressure -
Model & Size 12.5 ft Straight Frame Option 1 3 bar coil tine and single 14" roller Option 2 Double 14" rollers Option 3 - Option 4 - Equipment Options -
