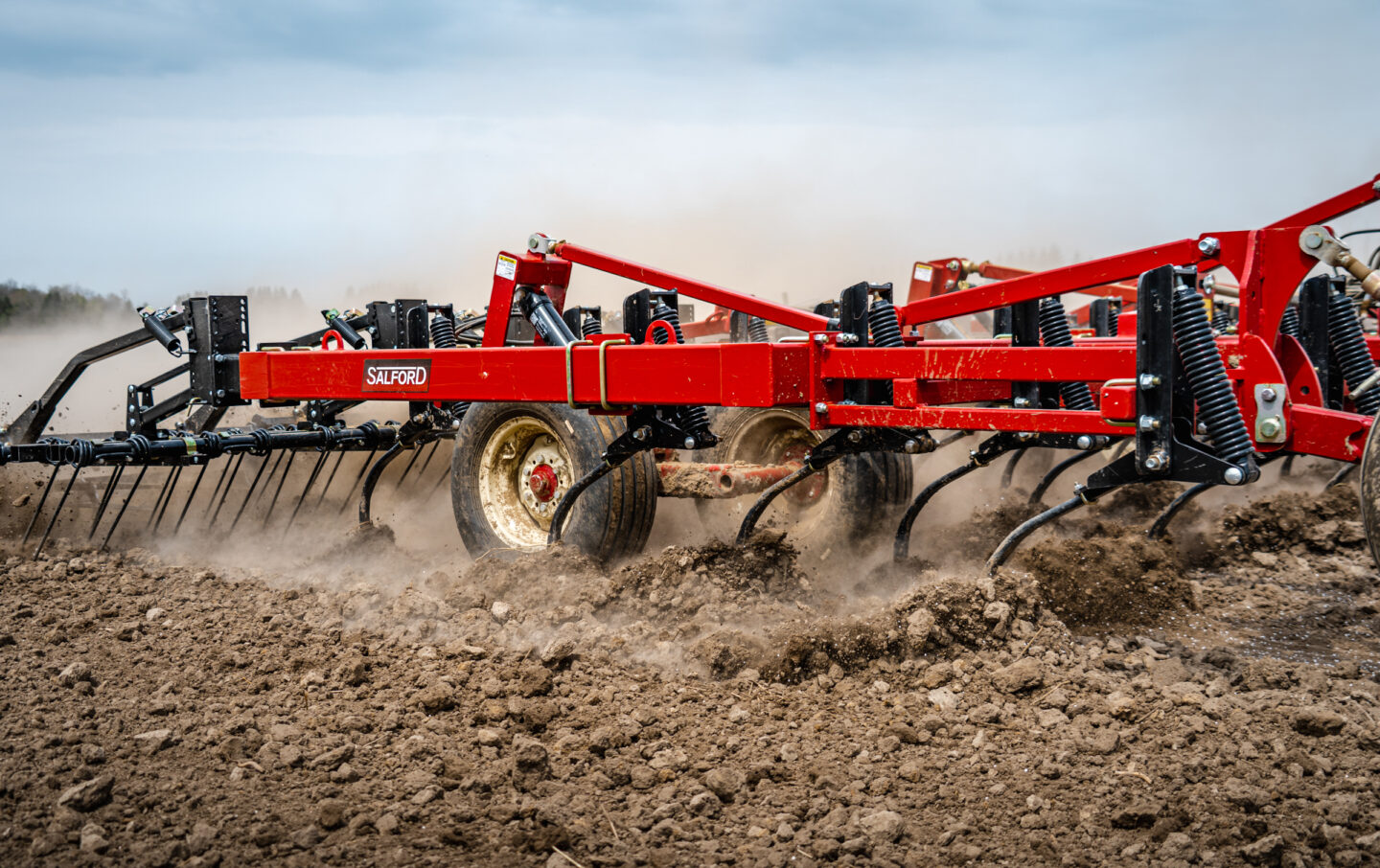

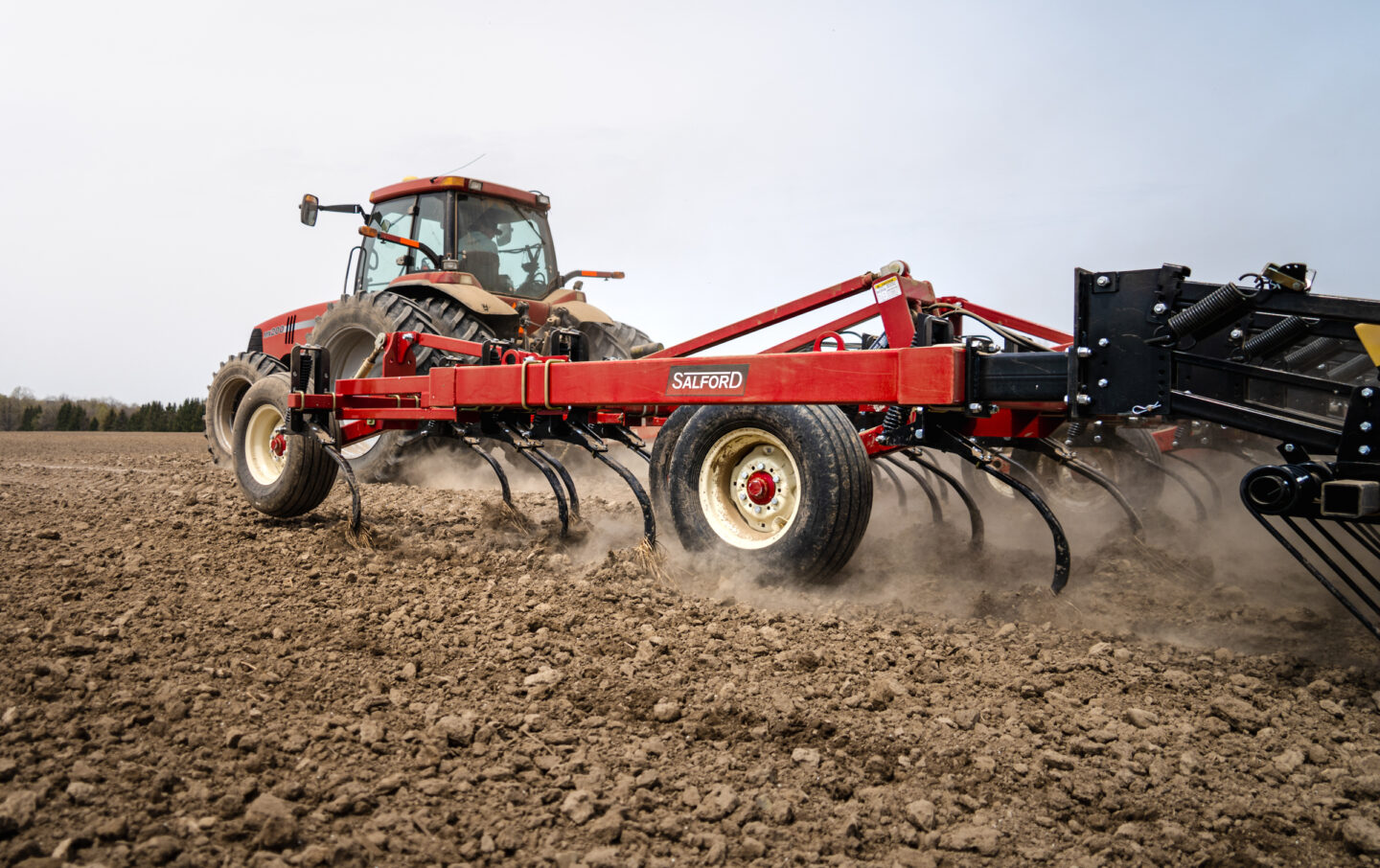

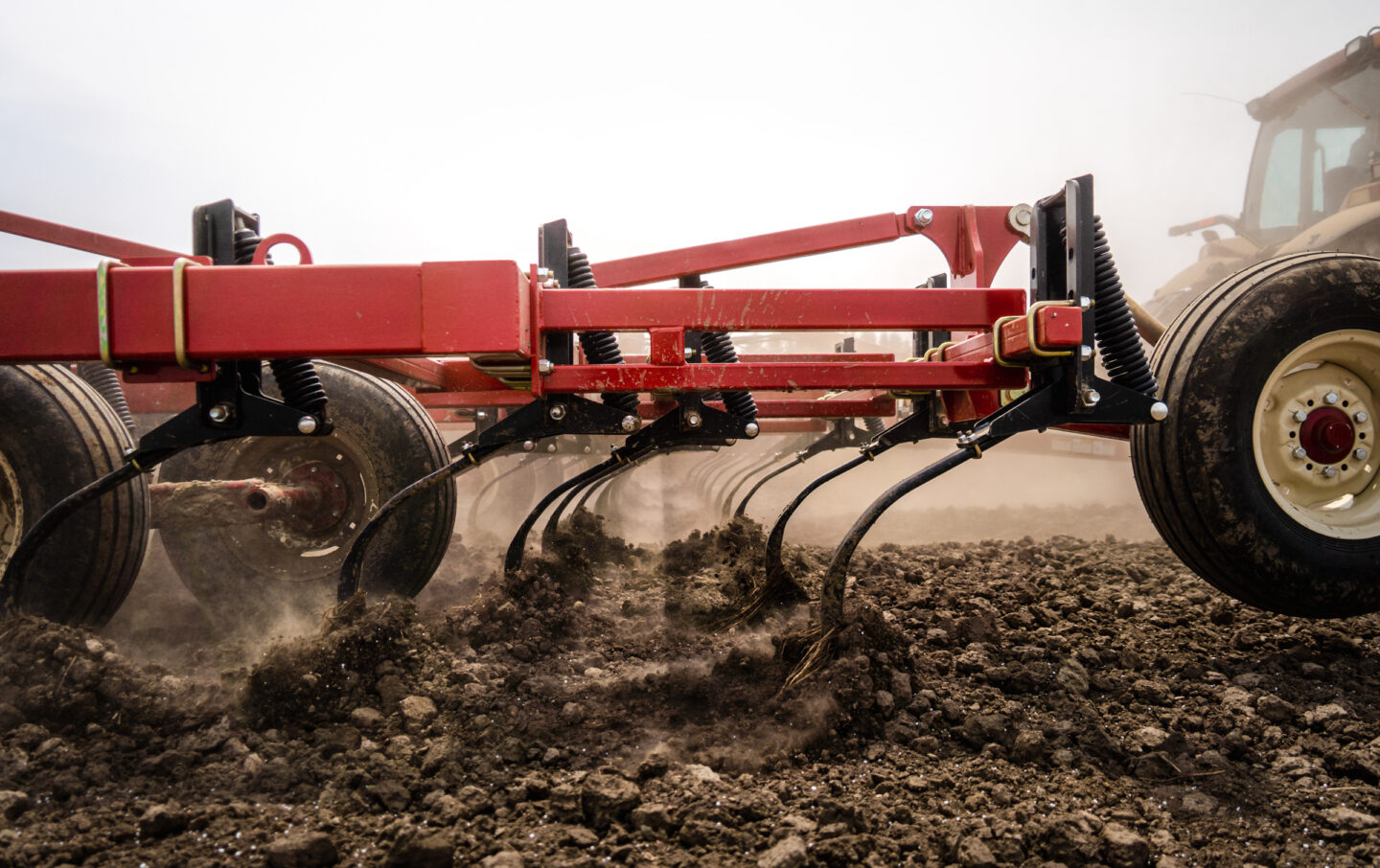

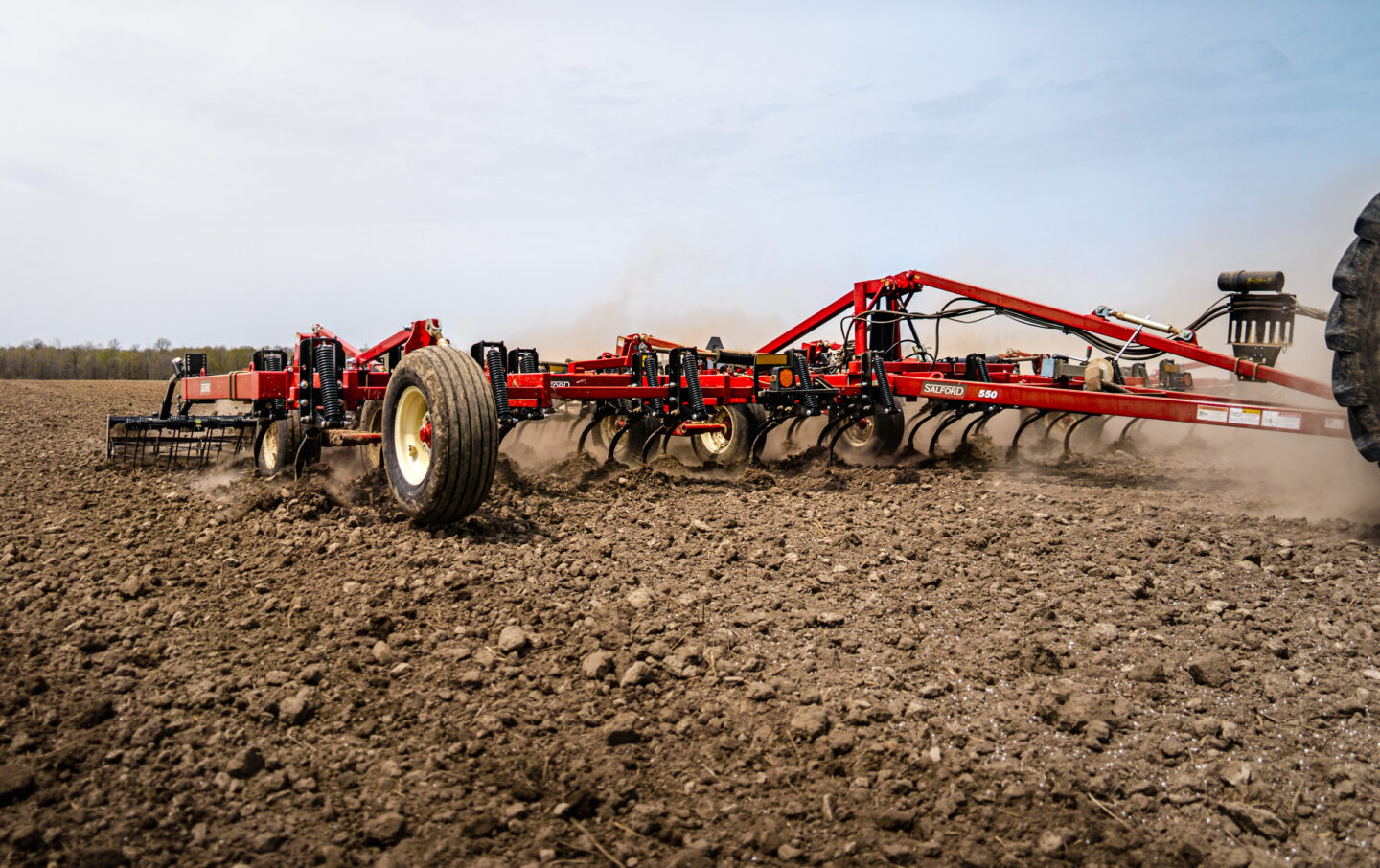

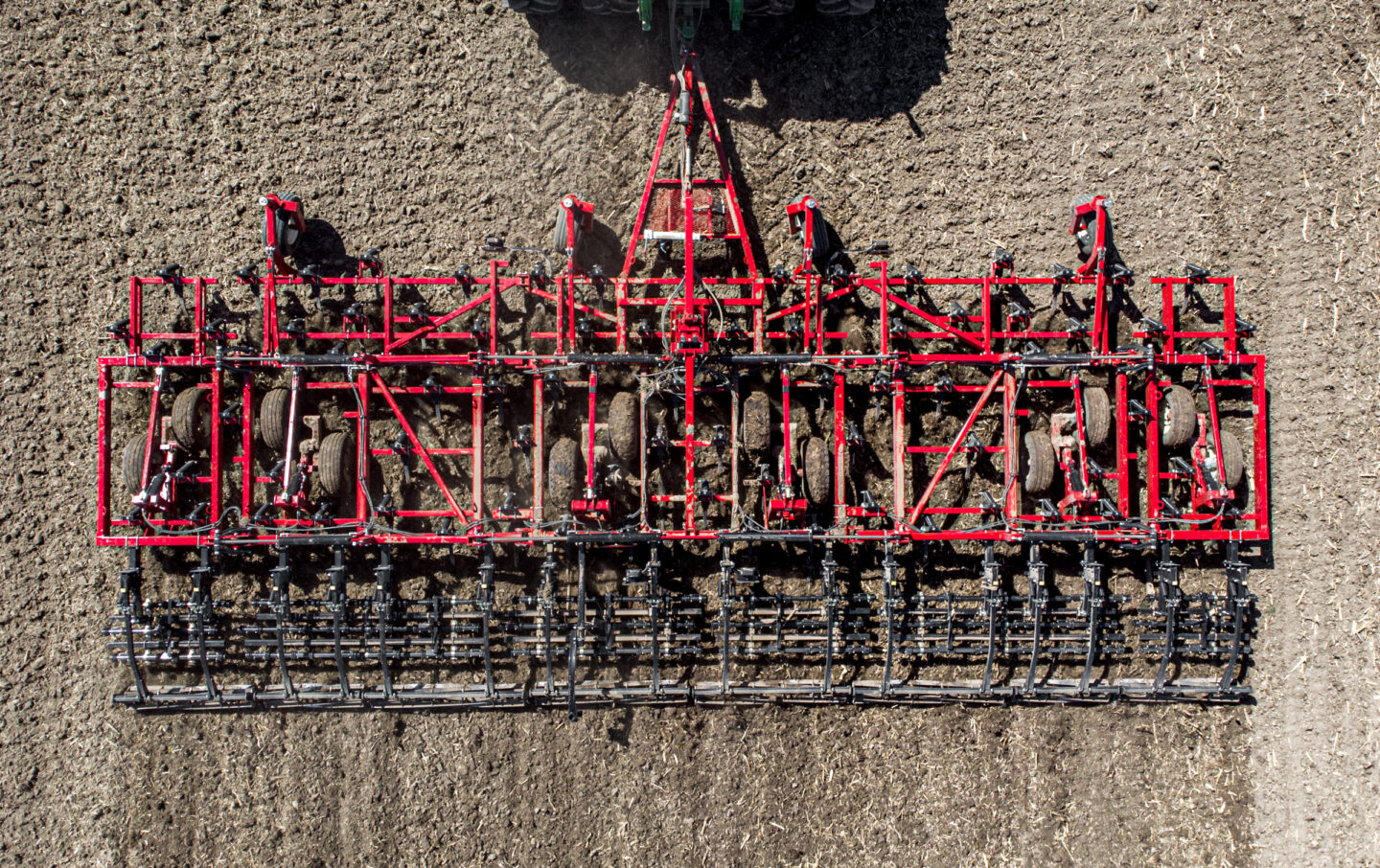

Model & Size 19 ft 21 ft 23 ft 25 ft 28 ft 30 ft 32 ft 40 ft 44 ft 50 ft 62 ft Front row(s) ground engaging equipment (description) C-Shank C-Shank C-Shank C-Shank C-Shank C-Shank C-Shank C-Shank C-Shank C-Shank C-Shank Front row(s) ground engaging equipment (quantity) 2 2 2 2 2 2 2 2 2 2 2 Front row(s) equipment quantity 14 15 16 18 20 21 22 21 30 34 42 Front row(s) equipment mount C-Shank C-Shank C-Shank C-Shank C-Shank C-Shank C-Shank C-Shank C-Shank C-Shank C-Shank Equipment spacing, in (mm) 7 in (177.8 mm) 7 in (177.8 mm) 7 in (177.8 mm) 7 in (177.8 mm) 7 in (177.8 mm) 7 in (177.8 mm) 7 in (177.8 mm) 7 in (177.8 mm) 7 in (177.8 mm) 7 in (177.8 mm) 7 in (177.8 mm) Equipment size, in (mm) 7 in sweeps (177.8 mm) 7 in sweeps (177.8 mm) 7 in sweeps (177.8 mm) 7 in sweeps (177.8 mm) 7 in sweeps (177.8 mm) 7 in sweeps (177.8 mm) 7 in sweeps (177.8 mm) 7 in sweeps (177.8 mm) 7 in sweeps (177.8 mm) 7 in sweeps (177.8 mm) 7 in sweeps (177.8 mm) Angle - - - - - - - - - - - Bearings - - - - - - - - - - -
Model & Size 19 ft 21 ft 23 ft 25 ft 28 ft 30 ft 32 ft 40 ft 44 ft 50 ft 62 ft Rear row(s) ground engaging equipment (description) C-Shank C-Shank C-Shank C-Shank C-Shank C-Shank C-Shank C-Shank C-Shank C-Shank C-Shank Rear row(s) ground engaging equipment (quantity) 3 3 3 3 3 3 3 3 3 3 3 Rear row(s) equipment quantity 19 22 23 25 29 30 33 48 45 51 62 Rear row(s) equipment mount C-Shank C-Shank C-Shank C-Shank C-Shank C-Shank C-Shank C-Shank C-Shank C-Shank C-Shank Equipment spacing, in (mm) 7 in (177.8 mm) 7 in (177.8 mm) 7 in (177.8 mm) 7 in (177.8 mm) 7 in (177.8 mm) 7 in (177.8 mm) 7 in (177.8 mm) 7 in (177.8 mm) 7 in (177.8 mm) 7 in (177.8 mm) 7 in (177.8 mm) Equipment size, in (mm) 7 in sweeps (177.8 mm) 7 in sweeps (177.8 mm) 7 in sweeps (177.8 mm) 7 in sweeps (177.8 mm) 7 in sweeps (177.8 mm) 7 in sweeps (177.8 mm) 7 in sweeps (177.8 mm) 7 in sweeps (177.8 mm) 7 in sweeps (177.8 mm) 7 in sweeps (177.8 mm) 7 in sweeps (177.8 mm) Angle - - - - - - - - - - - Bearings - - - - - - - - - - -
Model & Size 19 ft 21 ft 23 ft 25 ft 28 ft 30 ft 32 ft 40 ft 44 ft 50 ft 62 ft Transport wheel mounting 6-bolt 6-bolt 6-bolt 6-bolt 6-bolt 6-bolt 6-bolt 8-bolt 8-bolt 8-bolt 8-bolt Transport tires 11L x 15 “C" Tires 11L x 15 “C" Tires 11L x 15 “C" Tires 11L x 15 “C" Tires 11L x 15 load range “F” Tires 11L x 15 load range “F” Tires 11L x 15 load range “F” Tires 12.5 x 15 Highway service load range “F” Tires 340/60 R16.5 Tires 340/60 R16.5 Tires 340/60 R16.5 Tires Wing wheel mounting 6-bolt 6-bolt 6-bolt 6-bolt 6-bolt 6-bolt 6-bolt 6-bolt 6-bolt 6-bolt 6-bolt Wing tires 11L x 15 “C” range Tires 11L x 15 “C” range Tires 11L x 15 “C” range Tires 11L x 15 “C” range Tires 11L x 15 “C” range Tires 11L x 15 “C” range Tires 11L x 15 “C” range Tires 11L x 15 “C” range Tires 11L x 15 load range “C” Tires 11L x 15 load range “C” Tires Primary Wing: 11L x 15 "D" Tires, Secondary Wing: 11L x 15 “C” range Tires Gauge wheel mounting N/A N/A N/A N/A Manual adjustable gauge wheels on primary wing only Manual adjustable gauge wheels on primary wing only Manual adjustable gauge wheels on primary wing only Manual adjustable gauge wheels on primary wing only Manual adjustable gauge wheels on primary wing only Manual adjustable gauge wheels on both wings Manual adjustable gauge wheels on both wings Guage wheel tires N/A N/A N/A N/A Primary Wing: 6-Bolt 11L x 15 “C” range Tires Primary Wing: 6-Bolt 11L x 15 “C” range Tires Primary Wing: 6-Bolt 11L x 15 “C” range Tires Primary Wing: 6-Bolt 11L x 15 “C” range Tires Primary Wing: 6-Bolt 11L x 15 “C” range Tires Primary & Secondary Wing: 6-Bolt 11L x 15 “C” range Tires Primary & Secondary Wing: 6-Bolt 11L x 15 “C” range Tires
Model & Size 19 ft 21 ft 23 ft 25 ft 28 ft 30 ft 32 ft 40 ft 44 ft 50 ft 62 ft Hookup to tractor, mounted or pull-type Cast hitch cat. 3 with clevis adapter Cast hitch cat. 3 with clevis adapter Cast hitch cat. 3 with clevis adapter Category 3 hitch with bolt in adapter or Category 4 single clevis Category 3 hitch with bolt in adapter or Category 4 single clevis Category 3 hitch with bolt in adapter or Category 4 single clevis Category 3 hitch with bolt in adapter or Category 4 single clevis Category 4 Single clevis hitch Category 4 Single clevis hitch Category 4 Single clevis hitch Category 4 Single clevis hitch
Model & Size 19 ft 21 ft 23 ft 25 ft 28 ft 30 ft 32 ft 40 ft 44 ft 50 ft 62 ft Typical operating depth, in (mm) 2-4 in (50.8-101.6 mm) 2-4 in (50.8-101.6 mm) 115 - 138 hp (85.76 - 102.90 kW) 2-4 in (50.8-101.6 mm) 2-4 in (50.8-101.6 mm) 2-4 in (50.8-101.6 mm) 2-4 in (50.8-101.6 mm) 2-4 in (50.8-101.6 mm) 2-4 in (50.8-101.6 mm) 2-4 in (50.8-101.6 mm) 2-4 in (50.8-101.6 mm) Operating speed (mph) 5-8 mph 5-8 mph 5-8 mph 5-8 mph 5-8 mph 5-8 mph 5-8 mph 5-8 mph 5-8 mph 5-8 mph 5-8 mph Depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Fore/aft leveling - - - - - - - - - - -
Model & Size 19 ft 21 ft 23 ft 25 ft 28 ft 30 ft 32 ft 40 ft 44 ft 50 ft 62 ft Required power, hp (kw) 95 - 114 hp (70.84 - 85.01 kW) 105 - 126 hp (78.30 - 93.95 kW) 115 - 138 hp (85.76 - 102.90 kW) 125 - 150 hp (93.21 - 111.86 kW) 140 - 168 hp (104.40 - 125.28 kW) 150 - 180 hp (111.86 - 134.23 kW) 160 - 192 hp (119.31 - 143.18 kW) 200 - 240 hp (149.14 - 178.97 kW) 220 - 264 hp (164.05 - 196.86 kW) 250 - 300 hp (186.43 - 223.71 kW) 310 - 372 hp (231.17 - 277.61 kW) Remote Hydraulic Values required 2 2 2 2 2 2 2 2 2 2 2 Hydraulic Pressure - - - - - - - - - - -

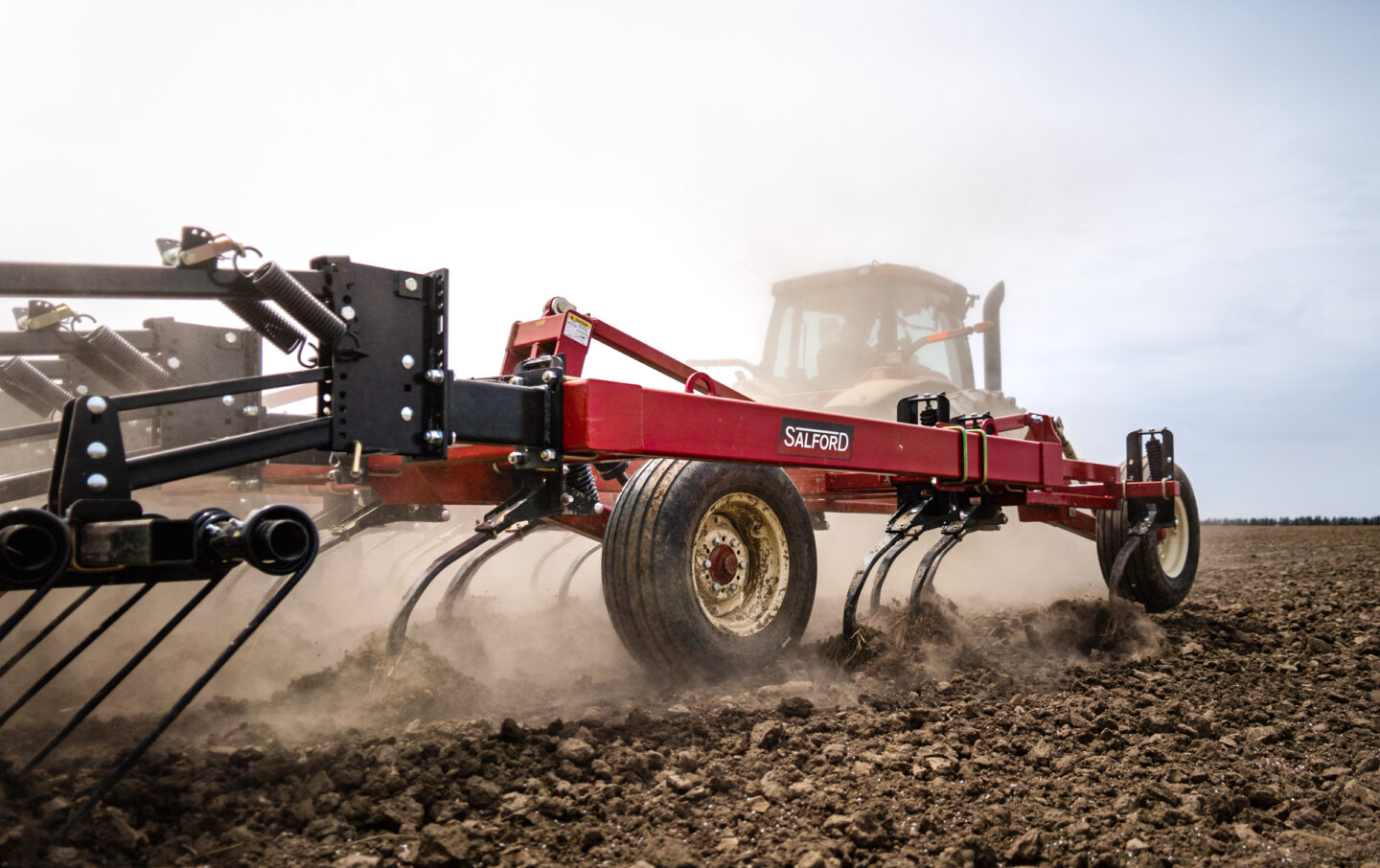

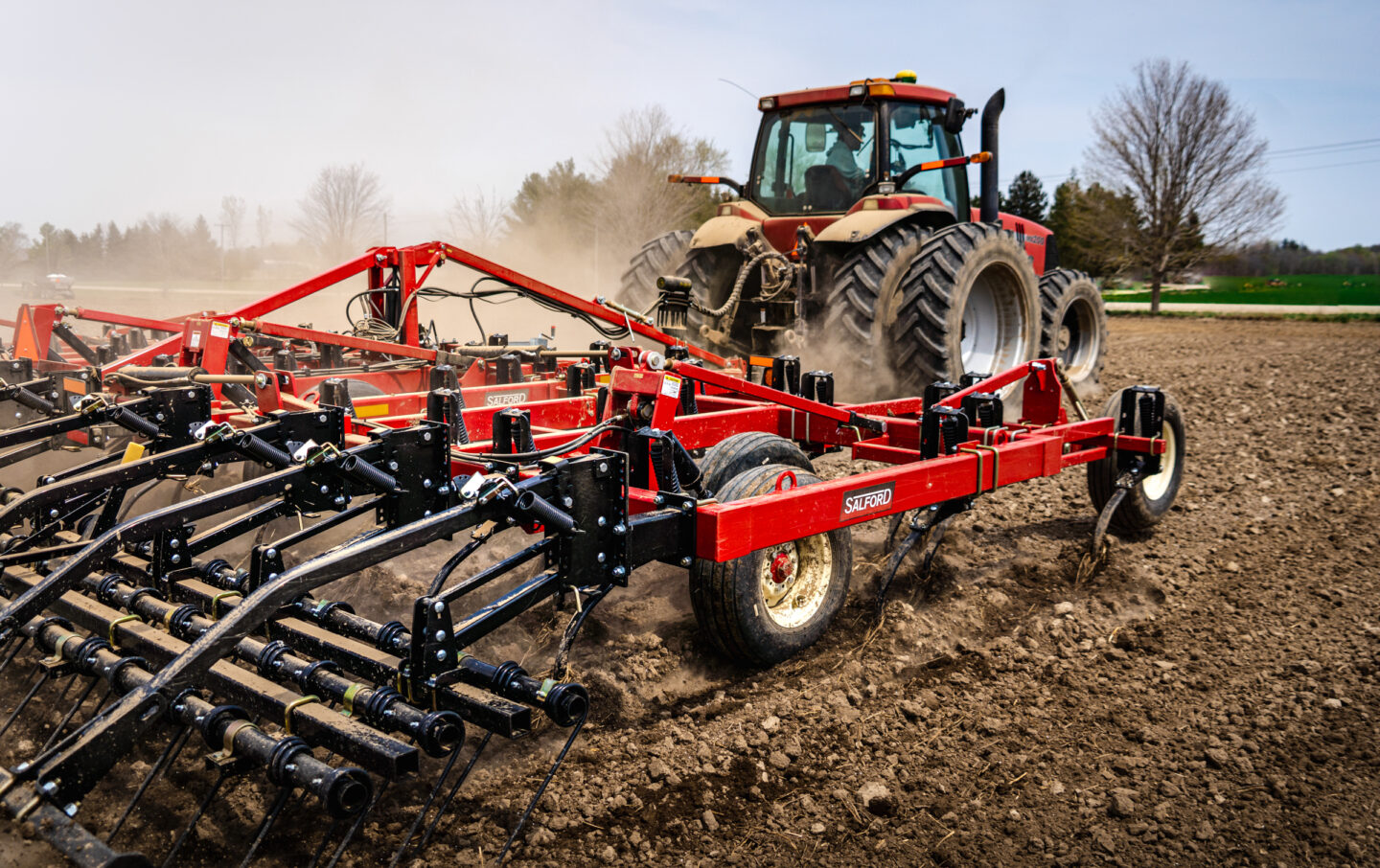

Model & Size 19 ft 21 ft 23 ft 25 ft 28 ft 30 ft 32 ft 40 ft 44 ft 50 ft 62 ft Option 1 3 Bar 1/2 in HD Tine 3 Bar 1/2 in HD Tine 3 Bar 1/2 in HD Tine 3 Bar 1/2 in HD Tine 3 Bar 1/2 in HD Tine 3 Bar 1/2 in HD Tine 3 Bar 1/2 in HD Tine 3 Bar 1/2 in HD Tine 3 Bar 1/2 in HD Tine 3 Bar 1/2 in HD Tine 3 Bar 1/2 in HD Tine Option 2 3 Bar HD 1/2 in Tine with Single 11 in Roller 3 Bar HD 1/2 in Tine with Single 11 in Roller 3 Bar HD 1/2 in Tine with Single 11 in Roller 3 Bar HD 1/2 in Tine with Single 11 in Roller 3 Bar HD 1/2 in Tine with Single 11 in Roller 3 Bar HD 1/2 in Tine with Single 11 in Roller 3 Bar HD 1/2 in Tine with Single 11 in Roller 3 Bar HD 1/2 in Tine with Single 11 in Roller 3 Bar HD 1/2 in Tine with Single 11 in Roller 3 Bar HD 1/2 in Tine with Single 11 in Roller 3 Bar HD 1/2 in Tine with Single 11 in Roller Option 3 3 Bar HD 1/2 in Tine with Single 14 in Roller 3 Bar HD 1/2 in Tine with Single 14 in Roller 3 Bar HD 1/2 in Tine with Single 14 in Roller 3 Bar HD 1/2 in Tine with Single 14 in Roller 3 Bar HD 1/2 in Tine with Single 14 in Roller 3 Bar HD 1/2 in Tine with Single 14 in Roller 3 Bar HD 1/2 in Tine with Single 14 in Roller 3 Bar HD 1/2 in Tine with Single 14 in Roller 3 Bar HD 1/2 in Tine with Single 14 in Roller 3 Bar HD 1/2 in Tine with Single 14 in Roller 3 Bar HD 1/2 in Tine with Single 14 in Roller Option 4 - - - - - - - - - - - Equipment Options Tow Hitch Tow Hitch Tow Hitch Tow Hitch Tow Hitch Tow Hitch Tow Hitch Tow Hitch, "Land Hugger” Floating Frame with manual adjust caster wheel Tow Hitch, "Land Hugger” Floating Frame with manual adjust caster wheel Tow Hitch, "Land Hugger” Floating Frame with manual adjust caster wheel Tow Hitch, "Land Hugger” Floating Frame with manual adjust caster wheel
19 ft 21 ft 23 ft 25 ft 28 ft 30 ft 32 ft 40 ft 44 ft 50 ft 62 ft
Model & Size 19 ft Front row(s) ground engaging equipment (description) C-Shank Front row(s) ground engaging equipment (quantity) 2 Front row(s) equipment quantity 14 Front row(s) equipment mount C-Shank Equipment spacing, in (mm) 7 in (177.8 mm) Equipment size, in (mm) 7 in sweeps (177.8 mm) Angle - Bearings -
Model & Size 19 ft Rear row(s) ground engaging equipment (description) C-Shank Rear row(s) ground engaging equipment (quantity) 3 Rear row(s) equipment quantity 19 Rear row(s) equipment mount C-Shank Equipment spacing, in (mm) 7 in (177.8 mm) Equipment size, in (mm) 7 in sweeps (177.8 mm) Angle - Bearings -
Model & Size 19 ft Transport wheel mounting 6-bolt Transport tires 11L x 15 “C" Tires Wing wheel mounting 6-bolt Wing tires 11L x 15 “C” range Tires Gauge wheel mounting N/A Guage wheel tires N/A
Model & Size 19 ft Hookup to tractor, mounted or pull-type Cast hitch cat. 3 with clevis adapter
Model & Size 19 ft Typical operating depth, in (mm) 2-4 in (50.8-101.6 mm) Operating speed (mph) 5-8 mph Depth control Single point depth control Fore/aft leveling -
Model & Size 19 ft Required power, hp (kw) 95 - 114 hp (70.84 - 85.01 kW) Remote Hydraulic Values required 2 Hydraulic Pressure -
Model & Size 19 ft Option 1 3 Bar 1/2 in HD Tine Option 2 3 Bar HD 1/2 in Tine with Single 11 in Roller Option 3 3 Bar HD 1/2 in Tine with Single 14 in Roller Option 4 - Equipment Options Tow Hitch
