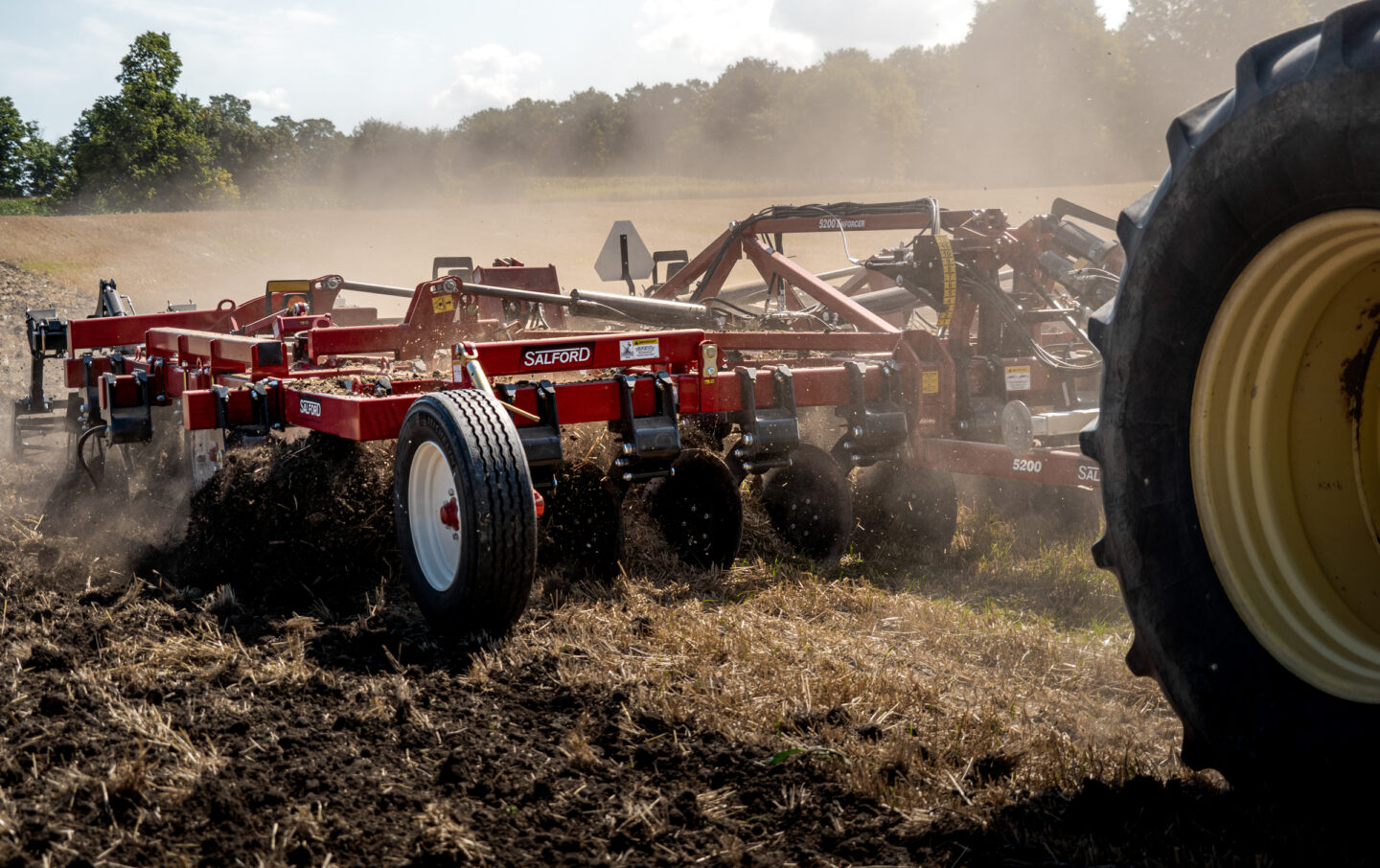

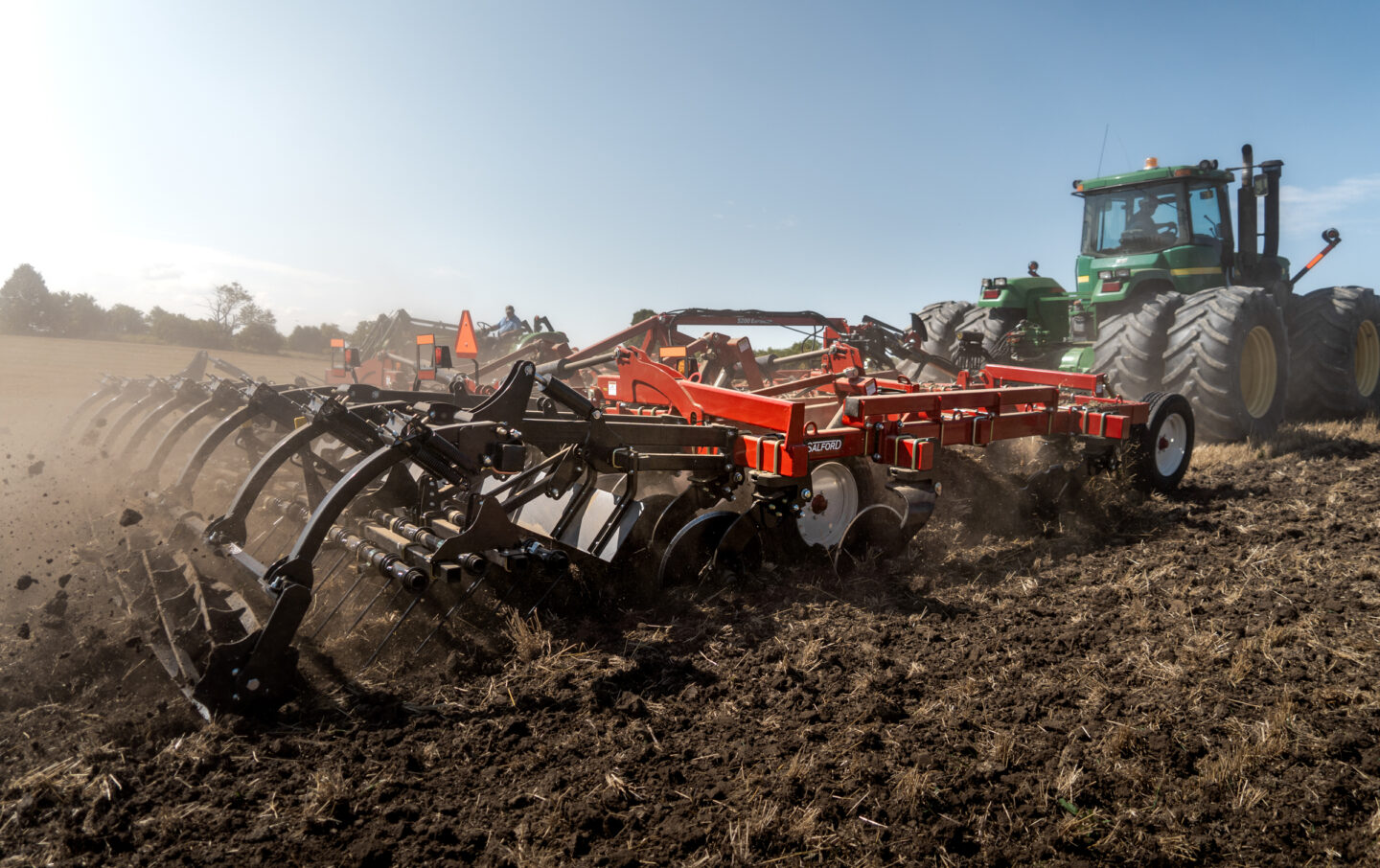

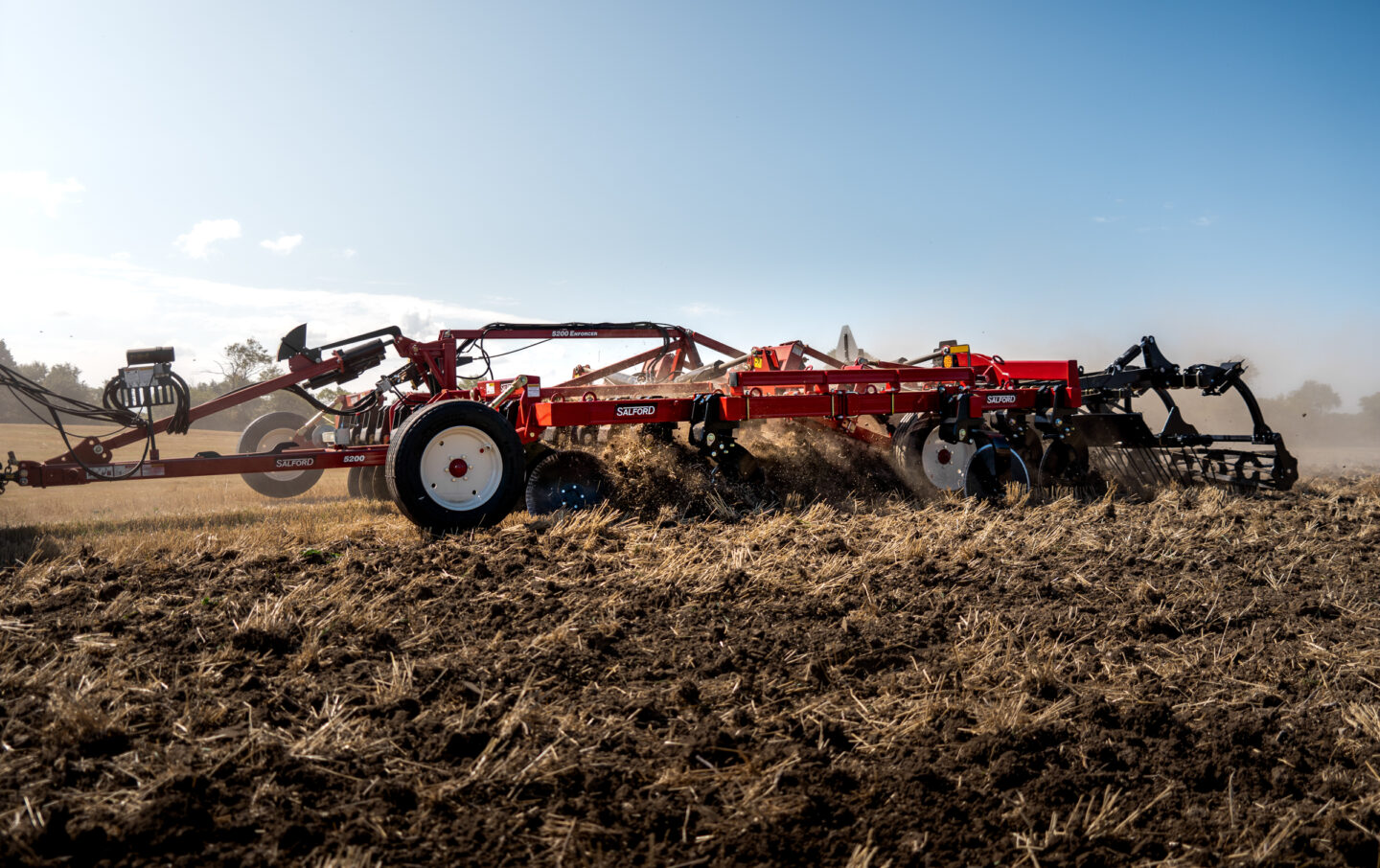

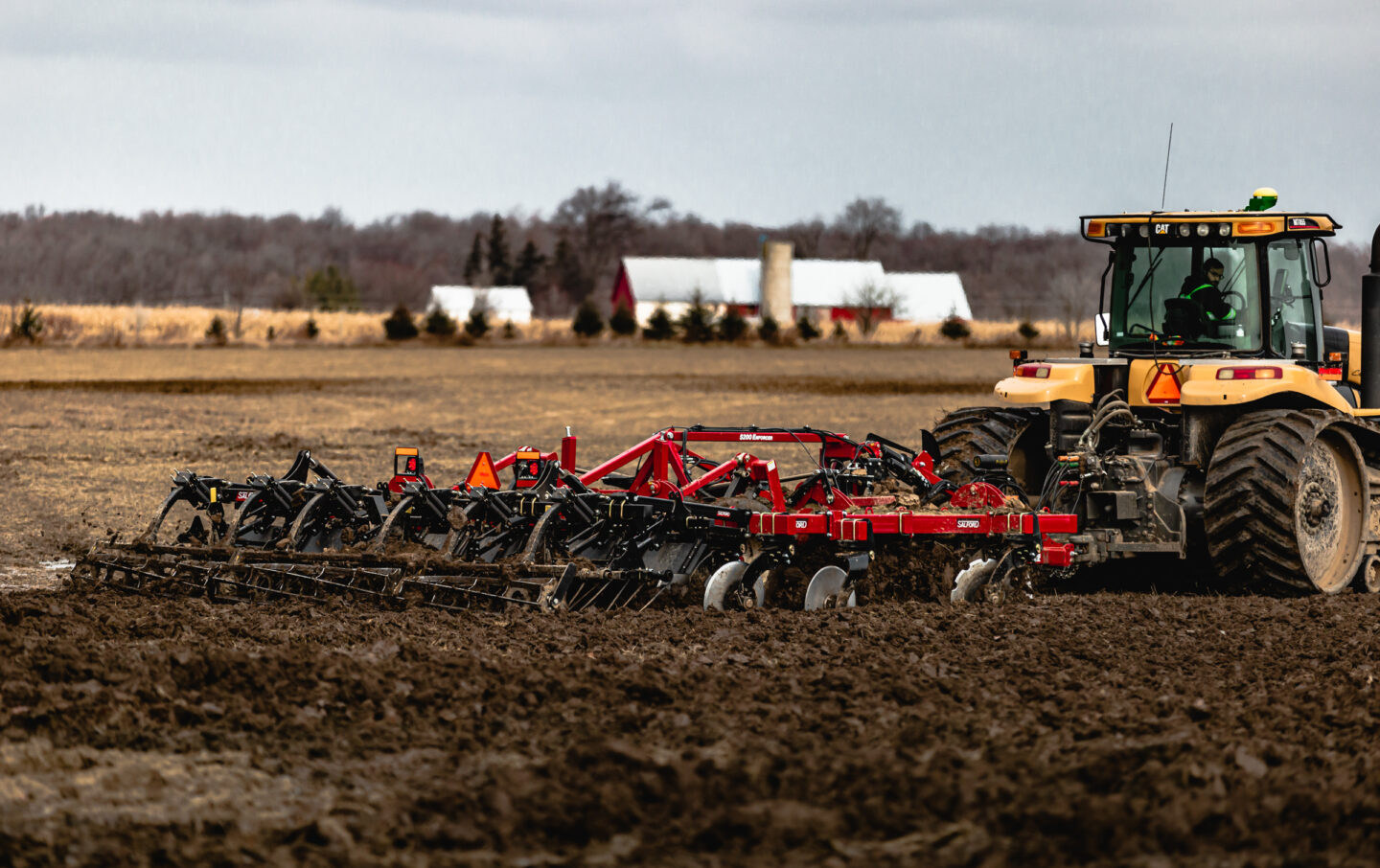

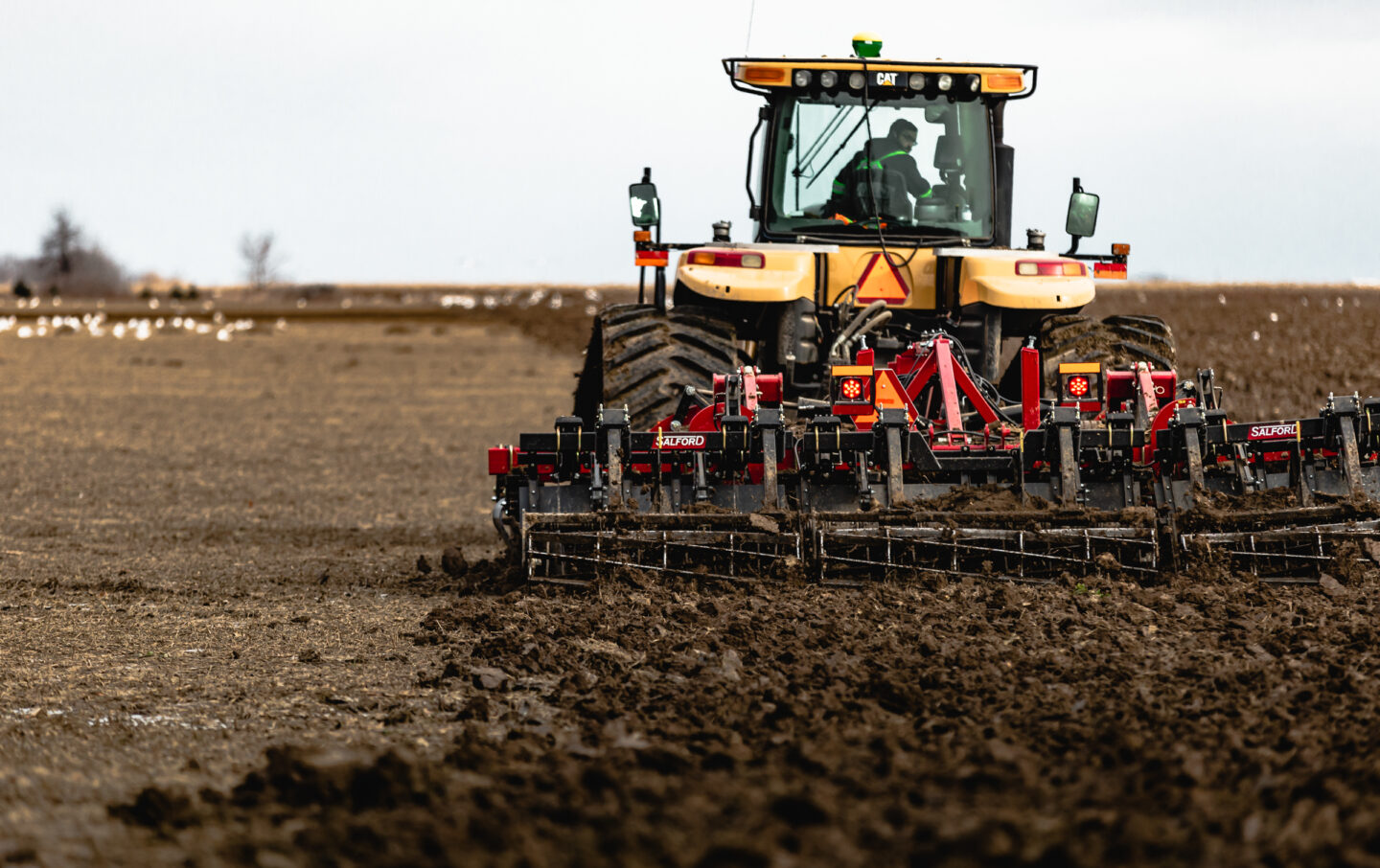

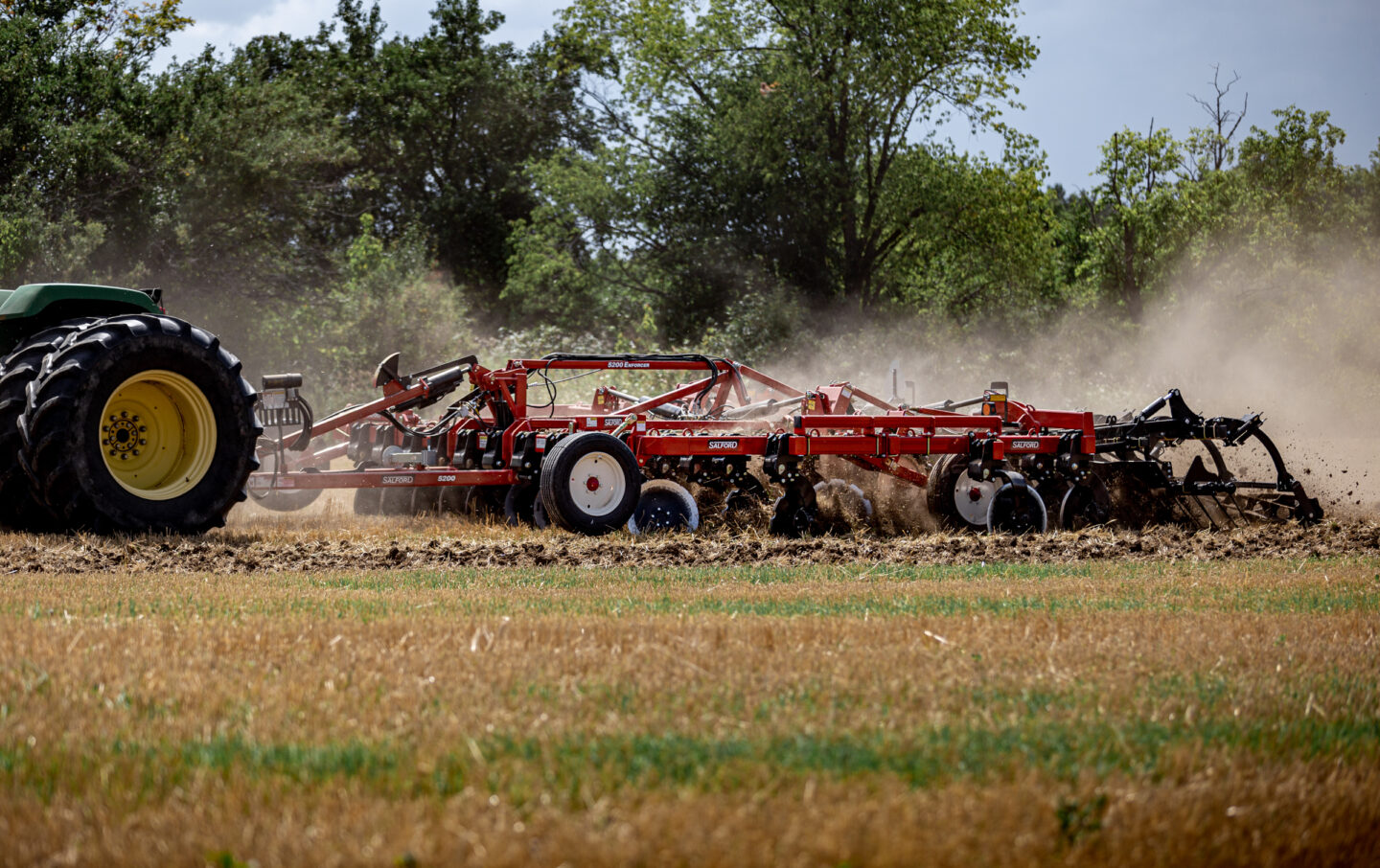

Model & Size 12 ft 16 ft 19 ft 22 ft 25 ft 29 ft 36 ft 39 ft Front row(s) ground engaging equipment (description) 5 bolt concave blade 5 bolt concave blade 5 bolt concave blade 5 bolt concave blade 5 bolt concave blade 5 bolt concave blade 5 bolt concave blade 5 bolt concave blade Front row(s) ground engaging equipment (quantity) 3 3 3 3 3 3 3 3 Front row(s) equipment quantity 21 27 33 39 45 51 63 69 Front row(s) equipment mount Rubber V-Wedge Suspension w/ V-Bolt Mount Rubber V-Wedge Suspension w/ V-Bolt Mount Rubber V-Wedge Suspension w/ V-Bolt Mount Rubber V-Wedge Suspension w/ V-Bolt Mount Rubber V-Wedge Suspension w/ V-Bolt Mount Rubber V-Wedge Suspension w/ V-Bolt Mount Rubber V-Wedge Suspension w/ V-Bolt Mount Rubber V-Wedge Suspension w/ V-Bolt Mount Equipment spacing, in (mm) 5 in (127 mm) 5 in (127 mm) 5 in (127 mm) 5 in (127 mm) 5 in (127 mm) 5 in (127 mm) 5 in (127 mm) 5 in (127 mm) Equipment size, in (mm) 22 in (559 mm) [Optional: 24 in (609 mm)] 22 in (559 mm) [Optional: 24 in (609 mm)] 22 in (559 mm) [Optional: 24 in (609 mm)] 22 in (559 mm) [Optional: 24 in (609 mm)] 22 in (559 mm) [Optional: 24 in (609 mm)] 22 in (559 mm) [Optional: 24 in (609 mm)] 22 in (559 mm) [Optional: 24 in (609 mm)] 22 in (559 mm) [Optional: 24 in (609 mm)] Angle Double compound angle Double compound angle Double compound angle Double compound angle Double compound angle Double compound angle Double compound angle Double compound angle Bearings Double Tapered Roller Bearing Double Tapered Roller Bearing Double Tapered Roller Bearing Double Tapered Roller Bearing Double Tapered Roller Bearing Double Tapered Roller Bearing Double Tapered Roller Bearing Double Tapered Roller Bearing
Model & Size 12 ft 16 ft 19 ft 22 ft 25 ft 29 ft 36 ft 39 ft Rear row(s) ground engaging equipment (description) 5 bolt concave blade 5 bolt concave blade 5 bolt concave blade 5 bolt concave blade 5 bolt concave blade 5 bolt concave blade 5 bolt concave blade 5 bolt concave blade Rear row(s) ground engaging equipment (quantity) 1 1 1 1 1 1 1 1 Rear row(s) equipment quantity 7 9 11 13 15 17 21 23 Rear row(s) equipment mount Rubber V-Wedge Suspension w/ V-Bolt Mount Rubber V-Wedge Suspension w/ V-Bolt Mount Rubber V-Wedge Suspension w/ V-Bolt Mount Rubber V-Wedge Suspension w/ V-Bolt Mount Rubber V-Wedge Suspension w/ V-Bolt Mount Rubber V-Wedge Suspension w/ V-Bolt Mount Rubber V-Wedge Suspension w/ V-Bolt Mount Rubber V-Wedge Suspension w/ V-Bolt Mount Equipment spacing, in (mm) 5 in (127 mm) 5 in (127 mm) 5 in (127 mm) 5 in (127 mm) 5 in (127 mm) 5 in (127 mm) 5 in (127 mm) 5 in (127 mm) Equipment size, in (mm) 22 in (559 mm) [Optional: 24 in (609 mm)] 22 in (559 mm) [Optional: 24 in (609 mm)] 22 in (559 mm) [Optional: 24 in (609 mm)] 22 in (559 mm) [Optional: 24 in (609 mm)] 22 in (559 mm) [Optional: 24 in (609 mm)] 22 in (559 mm) [Optional: 24 in (609 mm)] 22 in (559 mm) [Optional: 24 in (609 mm)] 22 in (559 mm) [Optional: 24 in (609 mm)] Angle Single compound angle Single compound angle Single compound angle Single compound angle Single compound angle Single compound angle Single compound angle Single compound angle Bearings Double Tapered Roller Bearing Double Tapered Roller Bearing Double Tapered Roller Bearing Double Tapered Roller Bearing Double Tapered Roller Bearing Double Tapered Roller Bearing Double Tapered Roller Bearing Double Tapered Roller Bearing
Model & Size 12 ft 16 ft 19 ft 22 ft 25 ft 29 ft 36 ft 39 ft Transport wheel mounting Dual axle 8-bolt Dual axle 8-bolt Dual axle 8-bolt Dual axle 8-bolt Dual axle 8-bolt Dual axle 8-bolt Dual axle 10-bolt Dual axle 10-bolt Transport tires 305/70 R22.5 Recapped Truck Tires 305/70 R22.5 Recapped Truck Tires 305/70 R22.5 Recapped Truck Tires 305/70 R22.5 Recapped Truck Tires 305/70 R22.5 Recapped Truck Tires 305/70 R22.5 Recapped Truck Tires 425/65 R22.5 Recapped Truck Tires 425/65 R22.5 Recapped Truck Tires Wing wheel mounting N/A N/A Single axle 6-bolt Dual axle 6-bolt Dual axle 6-bolt Dual axle 8-bolt Dual axle 8-bolt Dual axle 8-bolt Wing tires N/A N/A 245/70 R19.5 Recapped Truck Tires 245/70 R19.5 Recapped Truck Tires 245/70 R19.5 Recapped Truck Tires 305/70 R22.5 Recapped Truck Tires 305/70 R22.5 Recapped Truck Tires 305/70 R22.5 Recapped Truck Tires Gauge wheel mounting N/A N/A Single Fixed Gauge Wheels per Wing Single Fixed Gauge Wheels per Wing Single Fixed Gauge Wheels per Wing Single Fixed Gauge Wheels per Wing Single Fixed Gauge Wheels per Wing Single Fixed Gauge Wheels per Wing Guage wheel tires N/A N/A 245/70 R19.5 Recapped Truck Tires 245/70 R19.5 Recapped Truck Tires 245/70 R19.5 Recapped Truck Tires 245/70 R19.5 Recapped Truck Tires 245/70 R19.5 Recapped Truck Tires 245/70 R19.5 Recapped Truck Tires
Model & Size 12 ft 16 ft 19 ft 22 ft 25 ft 29 ft 36 ft 39 ft Hookup to tractor, mounted or pull-type Category 3 or Category 4 hitch Category 3 or Category 4 hitch Category 3 or Category 4 hitch Category 3 or Category 4 hitch Category 3 or Category 4 hitch Category 3 or Category 4 hitch Category 3 or Category 4 hitch Category 3 or Category 4 hitch
Model & Size 12 ft 16 ft 19 ft 22 ft 25 ft 29 ft 36 ft 39 ft Typical operating depth, in (mm) 3-5 in (56-127 mm) 3-5 in (56-127 mm) 3-5 in (56-127 mm) 3-5 in (56-127 mm) 3-5 in (56-127 mm) 3-5 in (56-127 mm) 3-5 in (56-127 mm) 3-5 in (56-127 mm) Operating speed (mph) 5.5-9 mph 5.5-9 mph 5.5-9 mph 5.5-9 mph 5.5-9 mph 5.5-9 mph 5.5-9 mph 5.5-9 mph Depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Fore/aft leveling Hydraulic fore/aft leveling Hydraulic fore/aft leveling Hydraulic fore/aft leveling Hydraulic fore/aft leveling Hydraulic fore/aft leveling Hydraulic fore/aft leveling Hydraulic fore/aft leveling Hydraulic fore/aft leveling
Model & Size 12 ft 16 ft 19 ft 22 ft 25 ft 29 ft 36 ft 39 ft Required power, hp (kw) 180 - 240 hp (134.23 - 178.97 kW) 240 - 320 hp (178.97 - 238.62 kW) 285 - 380 hp (212.52 - 283.37 kW) 330 - 440 hp (246.08 - 328.11 kW) 375 -500 hp (279.64 - 372.85 kW) 435 - 580 hp (324.28 - 432.51 kW) 540 - 720 hp (402.68 - 536.90 kW) 585 - 780 hp (436.02 - 581.65 kW) Remote Hydraulic Values required 3 (up to 5 with hydraulic options) 3 (up to 5 with hydraulic options) 3 (up to 5 with hydraulic options) 3 (up to 5 with hydraulic options) 3 (up to 5 with hydraulic options) 3 (up to 5 with hydraulic options) 3 (up to 5 with hydraulic options) 3 (up to 5 with hydraulic options) Hydraulic Pressure - - - - - - - -
Model & Size 12 ft 16 ft 19 ft 22 ft 25 ft 29 ft 36 ft 39 ft Option 1 3 Bar 1/2 in Coil Tine 3 Bar 1/2 in Coil Tine 3 Bar 1/2 in Coil Tine 3 Bar 1/2 in Coil Tine 3 Bar 1/2 in Coil Tine 3 Bar 1/2 in Coil Tine 3 Bar 1/2 in Coil Tine 3 Bar 1/2 in Coil Tine Option 2 Manual 3 Bar 12 in Coil Tine with 14 in Single Roller Manual 3 Bar 12 in Coil Tine with 14 in Single Roller Manual 3 Bar 12 in Coil Tine with 14 in Single Roller Manual 3 Bar 12 in Coil Tine with 14 in Single Roller Manual 3 Bar 12 in Coil Tine with 14 in Single Roller Manual 3 Bar 12 in Coil Tine with 14 in Single Roller Manual 3 Bar 12in Coil Tine with 14 in Single Roller Manual 3 Bar 12 in Coil Tine with 14 in Single Roller Option 3 Manual Coil Tine with Hydraulic Lift Roller Manual Coil Tine with Hydraulic Lift Roller Manual Coil Tine with Hydraulic Lift Roller Manual Coil Tine with Hydraulic Lift Roller Manual Coil Tine with Hydraulic Lift Roller Manual Coil Tine with Hydraulic Lift Roller Manual Coil Tine with Hydraulic Lift Roller Manual Coil Tine with Hydraulic Lift Roller Option 4 Hydraulic Adjust Coil Tine with Hydraulic Lift Single 14 in Roller Hydraulic Adjust Coil Tine with Hydraulic Lift Single 14 in Roller Hydraulic Adjust Coil Tine with Hydraulic Lift Single 14 in Roller Hydraulic Adjust Coil Tine with Hydraulic Lift Single 14 in Roller Hydraulic Adjust Coil Tine with Hydraulic Lift Single 14 in Roller Hydraulic Adjust Coil Tine with Hydraulic Lift Single 14 in Roller Hydraulic Adjust Coil Tine with Hydraulic Lift Single 14 in Roller Hydraulic Adjust Coil Tine with Hydraulic Lift Single 14 in Roller Equipment Options - - - - - - - -
Model & Size 12 ft Front row(s) ground engaging equipment (description) 5 bolt concave blade Front row(s) ground engaging equipment (quantity) 3 Front row(s) equipment quantity 21 Front row(s) equipment mount Rubber V-Wedge Suspension w/ V-Bolt Mount Equipment spacing, in (mm) 5 in (127 mm) Equipment size, in (mm) 22 in (559 mm) [Optional: 24 in (609 mm)] Angle Double compound angle Bearings Double Tapered Roller Bearing
Model & Size 12 ft Rear row(s) ground engaging equipment (description) 5 bolt concave blade Rear row(s) ground engaging equipment (quantity) 1 Rear row(s) equipment quantity 7 Rear row(s) equipment mount Rubber V-Wedge Suspension w/ V-Bolt Mount Equipment spacing, in (mm) 5 in (127 mm) Equipment size, in (mm) 22 in (559 mm) [Optional: 24 in (609 mm)] Angle Single compound angle Bearings Double Tapered Roller Bearing
Model & Size 12 ft Transport wheel mounting Dual axle 8-bolt Transport tires 305/70 R22.5 Recapped Truck Tires Wing wheel mounting N/A Wing tires N/A Gauge wheel mounting N/A Guage wheel tires N/A
Model & Size 12 ft Hookup to tractor, mounted or pull-type Category 3 or Category 4 hitch
Model & Size 12 ft Typical operating depth, in (mm) 3-5 in (56-127 mm) Operating speed (mph) 5.5-9 mph Depth control Single point depth control Fore/aft leveling Hydraulic fore/aft leveling
Model & Size 12 ft Required power, hp (kw) 180 - 240 hp (134.23 - 178.97 kW) Remote Hydraulic Values required 3 (up to 5 with hydraulic options) Hydraulic Pressure -
Model & Size 12 ft Option 1 3 Bar 1/2 in Coil Tine Option 2 Manual 3 Bar 12 in Coil Tine with 14 in Single Roller Option 3 Manual Coil Tine with Hydraulic Lift Roller Option 4 Hydraulic Adjust Coil Tine with Hydraulic Lift Single 14 in Roller Equipment Options -
