Model & Size 40 cu-ft Fertilizer Yes AG Lime No Litter No Organics No Seed Yes Other Granular Herbicide, Innoculant Number of products applied, including optional hopper compartments 1
Model & Size 40 cu-ft Hopper Size 40 cubic feet (1.13 cubic meter) Hopper Material Poly hopper, black frame Hopper Extensions N/A Hopper Gate Control Manual open/close Hopper Ladder Optional: ladder and platform included with “Chariot” Pull-Type Cart Hopper "Inverted V" Optional Agitator to avoid product bridging Hopper Sight Window Poly hopper is translucent allowing the operator to see level of material inside
Model & Size 40 cu-ft PTO Drive N/A Material Distribution Booms/Spinners/Air Line Two section 304 Stainless steel metering system with metering rollers 16 outlets Application Swath Width, ft (m) 24-60 feet (7.32 – 18.29 m) Material Distribution Drive 18 inch fan with hydraulic motor & check valve Metering Drive Option: Mechanical metering drive with 60 speed gearbox Option: Hydraulic metering drive Primary Metering Includes one set of meter rollers – 28-groove red meter roll or 12-groove grey meter roll Primary Metering Minimum Output Rate - Primary Metering Maximum Output Rate - Secondary Metering N/A Secondary Metering Minimum Output Rate - Secondary Metering Maximum Output Rate - Material Banding or Section Control Two section metering with magnetic clutches for left/right section control
Model & Size 40 cu-ft Transport wheel mounting 14L - 16.1 tires w/6 bolt rims Transport tires -

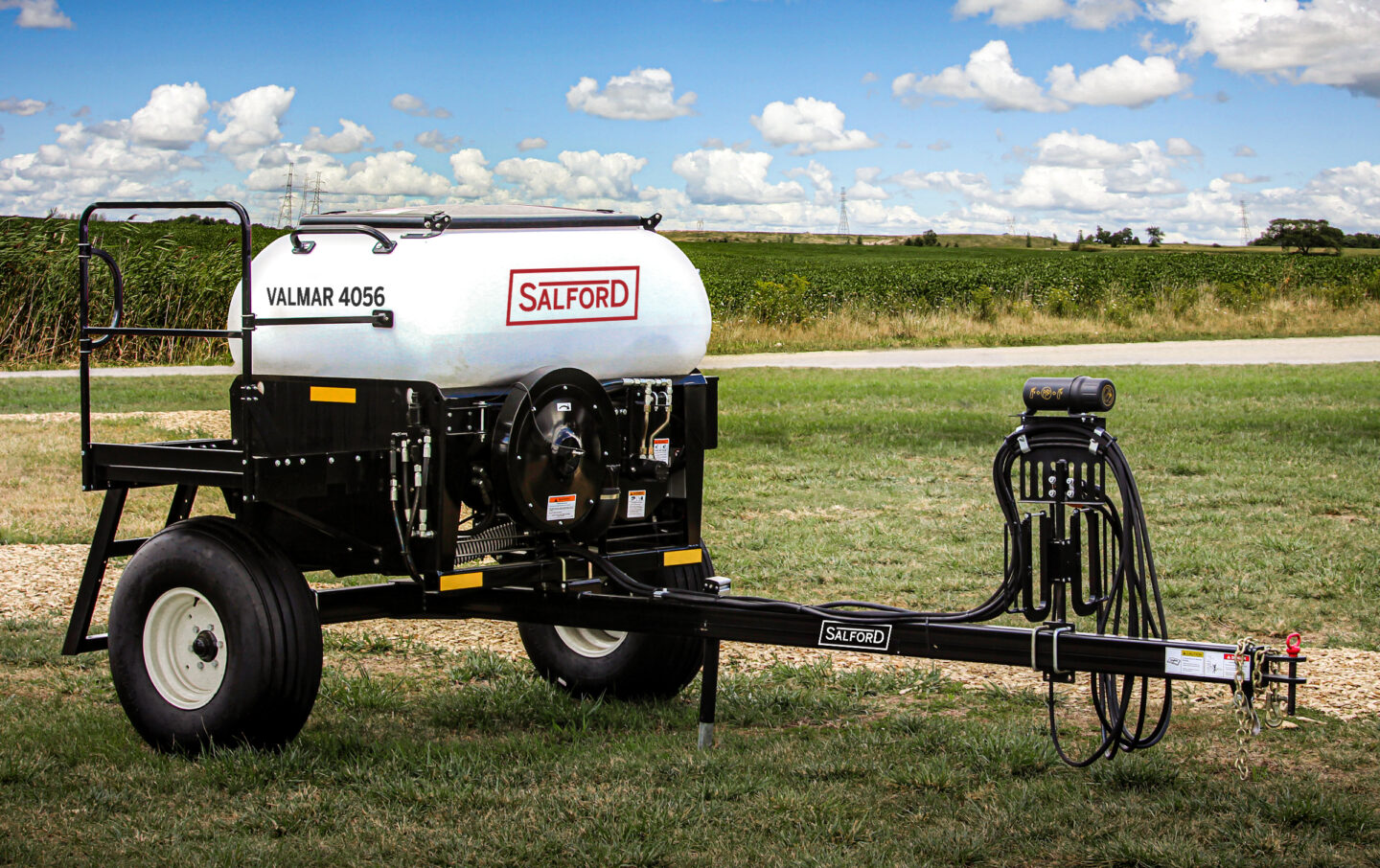

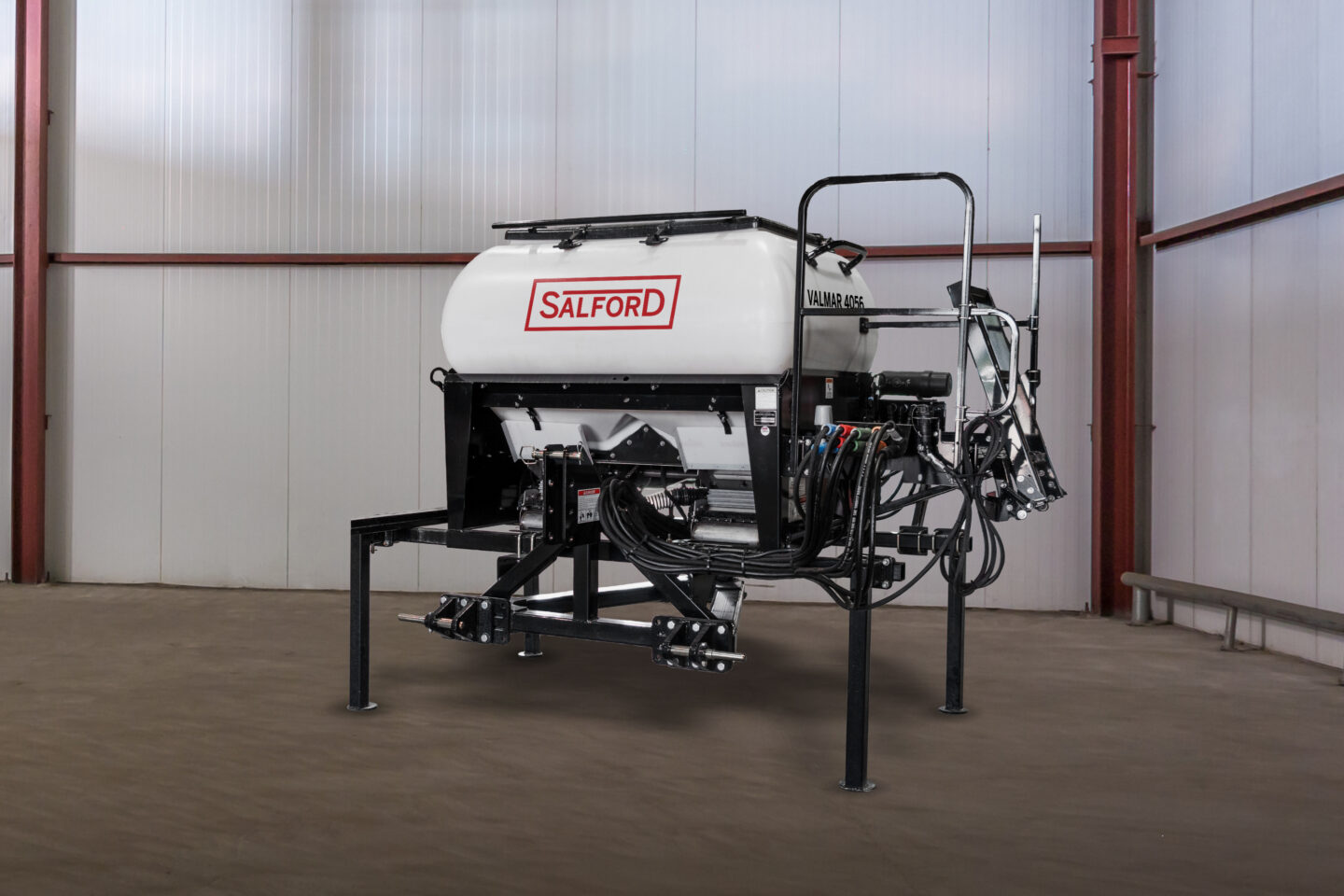

Model & Size 40 cu-ft Hookup to tractor, mounted or pull-type Pull-type - Standard: Implement mount applicator. Custom mounting may be required Optional: Applicator Mounted On "Chariot" Pull-Type Cart Optional: Applicator Mounted 3-Point Hitch with Integrated Implement 350 HP Drawbar Optional: Applicator Mounted 3-Point Hitch with Integrated Implement 600 HP Drawbar Jack Included with "Chariot" Pull-Type Cart
Model & Size 40 cu-ft Required power, hp (kw) - Remote Hydraulic Values required - Hydraulic Pressure -
Model & Size 40 cu-ft Monitors Options and Rate Control - Weigh System Option -
Model & Size 40 cu-ft Option 1 Paint: Black Option 2 Weather tight plastic lid Option 3 Optional: Lighting kit for "Chariot" Pull-Type Cart Option 4 - Equipment Options -
