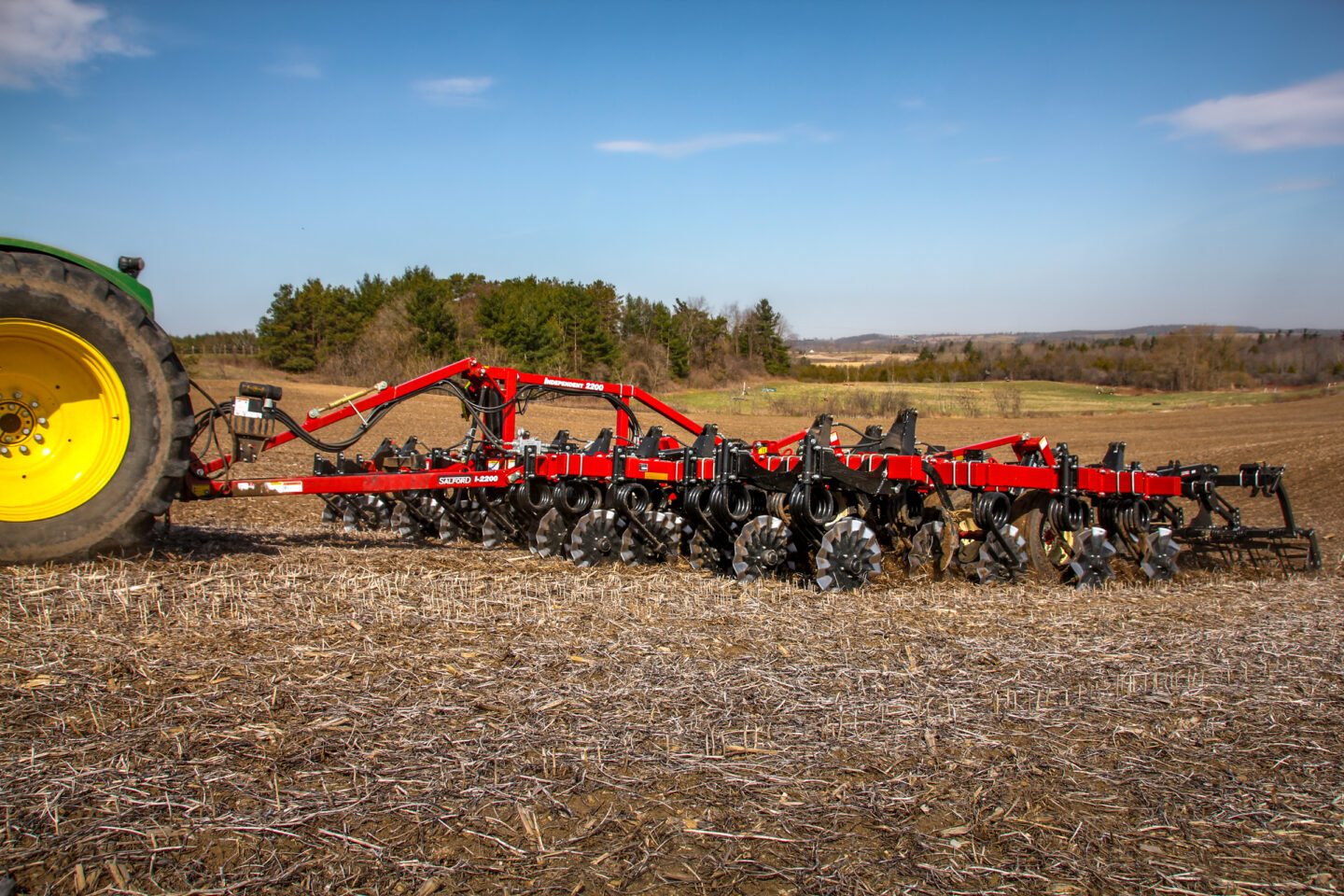

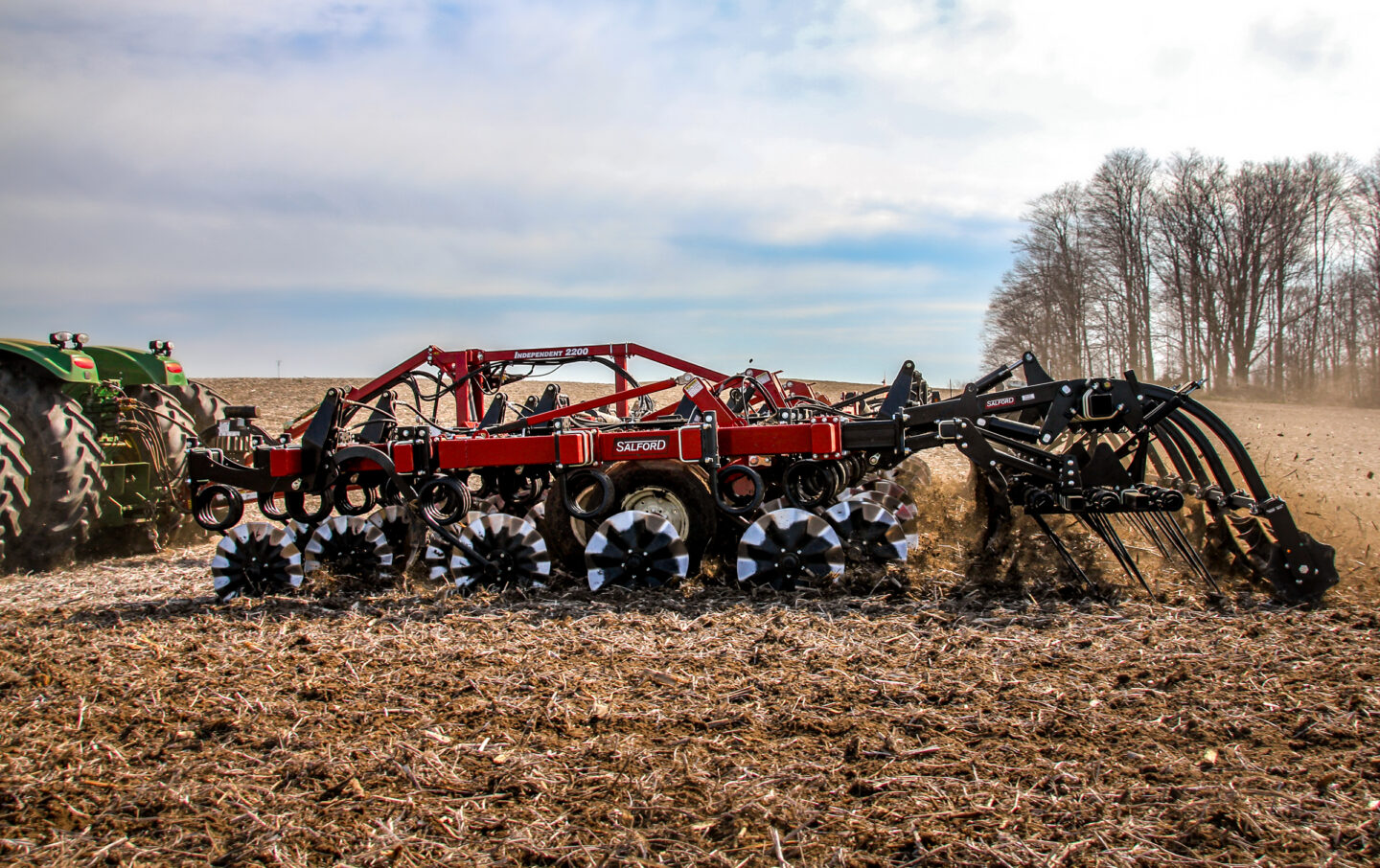

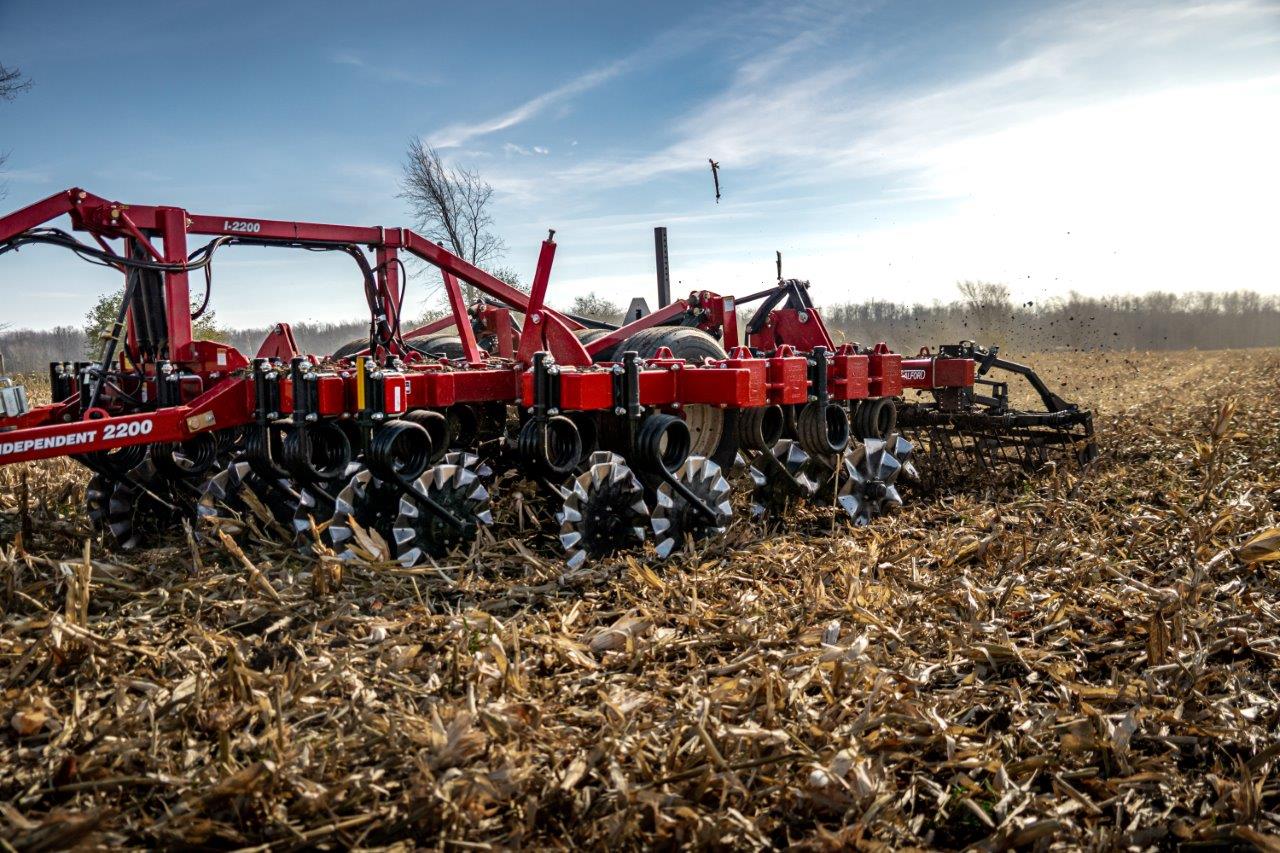

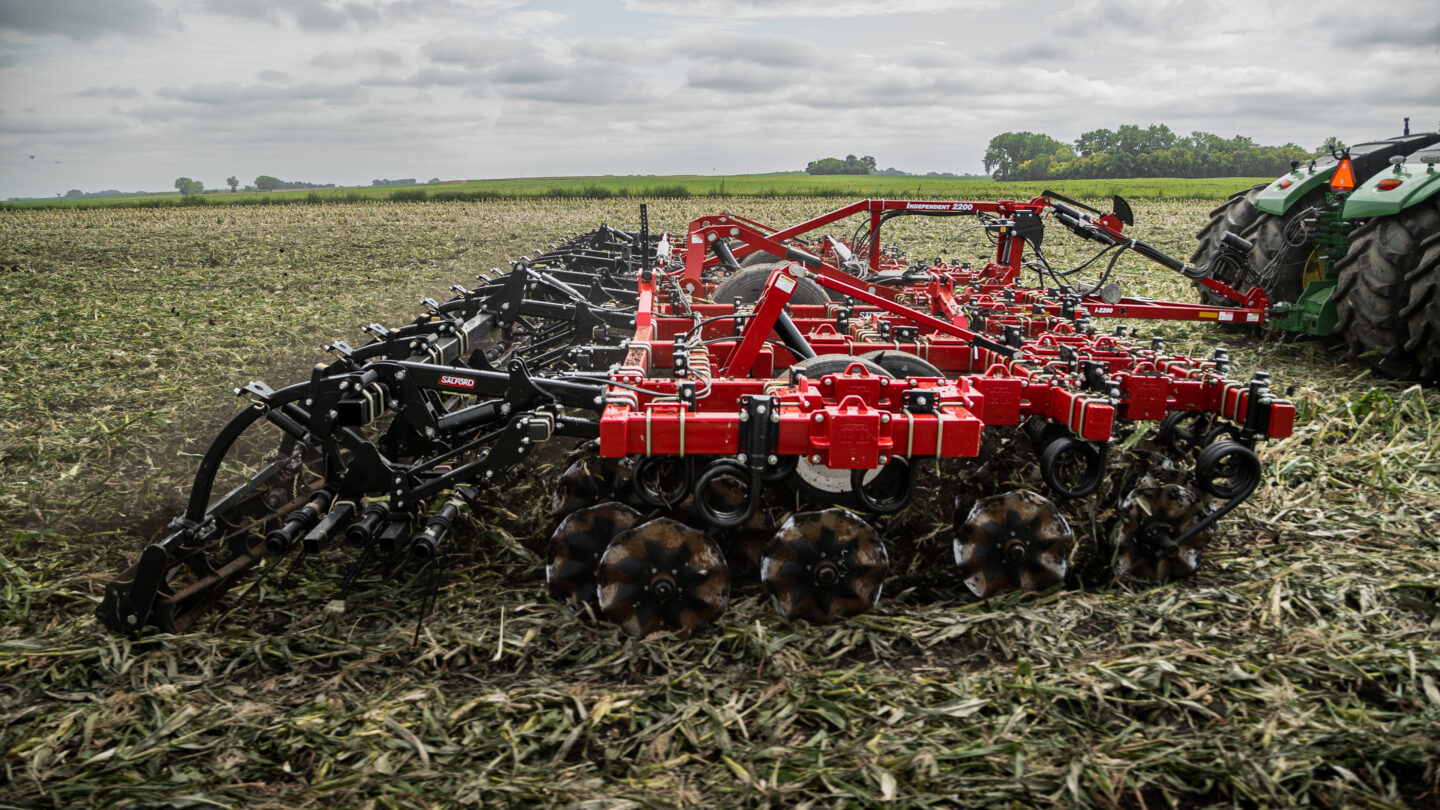

Model & Size 12 ft 16 ft 20 ft 24 ft 28 ft 31 ft 36 ft 41 ft Folding 41 ft Bi-Folding 50 ft Front row(s) ground engaging equipment (description) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Front row(s) ground engaging equipment (quantity) 2 2 2 2 2 2 2 2 2 2 Front row(s) equipment quantity 14 18 24 28 34 36 42 48 48 59 Front row(s) equipment mount 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts Equipment spacing, in (mm) 5 in (127 mm) 5 in (127 mm) 5 in (127 mm) 5 in (127 mm) 5 in (127 mm) 5 in (127 mm) 5 in (127 mm) 5 in (127 mm) 5 in (127 mm) 5 in (127 mm) Equipment size, in (mm) 22 in (558.8 mm) 22 in (558.8 mm) 22 in (558.8 mm) 22 in (558.8 mm) 22 in (558.8 mm) 22 in (558.8 mm) 22 in (558.8 mm) 22 in (558.8 mm) 22 in (558.8 mm) 22 in (558.8 mm) Angle - - - - - - - - - - Bearings Double Tapered Roller Bearing Double Tapered Roller Bearings Double Tapered Roller Bearing Double Tapered Roller Bearing Double Tapered Roller Bearing Double Tapered Roller Bearing Double Tapered Roller Bearing Double Tapered Roller Bearing Double Tapered Roller Bearing Double Tapered Roller Bearing
Model & Size 12 ft 16 ft 20 ft 24 ft 28 ft 31 ft 36 ft 41 ft Folding 41 ft Bi-Folding 50 ft Rear row(s) ground engaging equipment (description) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Wavy Coulters (8 or 13 Wave) Rear row(s) ground engaging equipment (quantity) 2 2 2 2 2 2 2 2 2 2 Rear row(s) equipment quantity 15 19 25 29 35 37 43 49 49 60 Rear row(s) equipment mount 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts 1 5/8in Coil-Tech II Blade Mounts Equipment spacing, in (mm) 5 in (127 mm) 5 in (127 mm) 5 in (127 mm) 5 in (127 mm) 5 in (127 mm) 5 in (127 mm) 5 in (127 mm) 5 in (127 mm) 5 in (127 mm) 5 in (127 mm) Equipment size, in (mm) 22 in (558.8 m) 22 in (558.8 mm) 22 in (558.8 mm) 22 in (558.8 mm) 22 in (558.8 mm) 22 in (558.8 mm) 22 in (558.8 mm) 22 in (558.8 mm) 22 in (558.8 m) 22 in (558.8 mm) Angle - - - - - - - - - - Bearings Double Tapered Roller Bearings Double Tapered Roller Bearings Double Tapered Roller Bearings Double Tapered Roller Bearings Double Tapered Roller Bearings Double Tapered Roller Bearing Double Tapered Roller Bearing Double Tapered Roller Bearing Double Tapered Roller Bearing Double Tapered Roller Bearing
Model & Size 12 ft 16 ft 20 ft 24 ft 28 ft 31 ft 36 ft 41 ft Folding 41 ft Bi-Folding 50 ft Transport wheel mounting 6-bolt 8-bolt 8-bolt 8-bolt 8-bolt 8-bolt 8-bolt 8-bolt 10-bolt 10-bolt Transport tires 11L x 15 “F” Tires 305/70 R22.5 Recapped Truck Tires 305/70 R22.5 Recapped Truck Tires 305/70 R22.5 Recapped Truck Tires 305/70 R22.5 Recapped Truck Tires 305/70 R22.5 Recapped Truck Tires 425/65 R22.5 Recapped Truck Tires 425/65 R22.5 Recapped Truck Tires 425/65 R22.5 Recapped Truck Tires 445/65 R22.5 Truck Tires (New) Wing wheel mounting N/A N/A 6-bolt 6-bolt 6-bolt 6-bolt 6-bolt 6-bolt 6-bolt 8-bolt Wing tires N/A N/A 11L x 15 “D” Tires 245/70 R19.5 Recapped Truck Tires 245/70 R19.5 Recapped Truck Tires 245/70 R19.5 Recapped Truck Tires 11L x 15 “D” Tires 11L x 15 “D” Tires 11L x 15 “D” Tires 305/70 R22.5 Recapped Truck Tires Gauge wheel mounting N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A Guage wheel tires N/A N/A N/A N/A N/A N/A N/A N/A N/A N/A
Model & Size 12 ft 16 ft 20 ft 24 ft 28 ft 31 ft 36 ft 41 ft Folding 41 ft Bi-Folding 50 ft Hookup to tractor, mounted or pull-type Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch Category 3 or Category 4 Hitch
Model & Size 12 ft 16 ft 20 ft 24 ft 28 ft 31 ft 36 ft 41 ft Folding 41 ft Bi-Folding 50 ft Typical operating depth, in (mm) 0-4 in (0-101.6 mm) 0-4 in (0-101.6 mm) 0-4 in (0-101.6 mm) 0-4 in (0-101.6 mm) 0-4 in (0-101.6 mm) 0-4 in (0-101.6 mm) 0-4 in (0-101.6 mm) 0-4 in (0-101.6 mm) 0-4 in (0-101.6 mm) 0-4 in (0-101.6 mm) Operating speed (mph) 8-12 mph 8-12 mph 8-12 mph 8-12 mph 8-12 mph 8-12 mph 8-12 mph 8-12 mph 8-12 mph 8-12 mph Depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Single point depth control Fore/aft leveling - - - - - - - - - -
Model & Size 12 ft 16 ft 20 ft 24 ft 28 ft 31 ft 36 ft 41 ft Folding 41 ft Bi-Folding 50 ft Required power, hp (kw) 144 hp (107.38 kW) 192 hp (143.18 kW) 240 hp (179.00 kW) 288 hp (214.76 kW) 336 hp (250.17 kW) 372 hp (277.60 kW) 432 hp (322.15 kW) 492 hp (366.86 kW) 492 hp (366.86 kW) 600 hp (447.42 kW) Remote Hydraulic Values required 2 2 2 2 2 2 2 2 2 2 Hydraulic Pressure - - - - - - - - - -
Model & Size 12 ft 16 ft 20 ft 24 ft 28 ft 31 ft 36 ft 41 ft Folding 41 ft Bi-Folding 50 ft Option 1 Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Coil Tine & Single 14” Roller Option 2 Hydraulic Adjust Coil Tine & Manual 14" Roller Hydraulic Adjust Coil Tine & Manual 14" Roller Hydraulic Adjust Coil Tine & Manual 14" Roller Hydraulic Adjust Coil Tine & Manual 14" Roller Hydraulic Adjust Coil Tine & Manual 14" Roller Hydraulic Adjust Coil Tine & Manual 14" Roller Hydraulic Adjust Coil Tine & Manual 14" Roller Hydraulic Adjust Coil Tine & Manual 14" Roller Hydraulic Adjust Coil Tine & Manual 14" Roller Hydraulic Adjust Coil Tine & Manual 14" Roller Option 3 Manual Coil Tine & Hydraulic Lift Roller Manual Coil Tine & Hydraulic Lift Roller Manual Coil Tine & Hydraulic Lift Roller Manual Coil Tine & Hydraulic Lift Roller Manual Coil Tine & Hydraulic Lift Roller Manual Coil Tine & Hydraulic Lift Roller Manual Coil Tine & Hydraulic Lift Roller Manual Coil Tine & Hydraulic Lift Roller Manual Coil Tine & Hydraulic Lift Roller Manual Coil Tine & Hydraulic Lift Roller Option 4 Hyd. Adjust Coil Tine & Hydraulic Lift Roller Hyd. Adjust Coil Tine & Hydraulic Lift Roller Hyd. Adjust Coil Tine & Hydraulic Lift Roller Hyd. Adjust Coil Tine & Hydraulic Lift Roller Hyd. Adjust Coil Tine & Hydraulic Lift Roller Hyd. Adjust Coil Tine & Hydraulic Lift Roller Hyd. Adjust Coil Tine & Hydraulic Lift Roller Hyd. Adjust Coil Tine & Hydraulic Lift Roller Hyd. Adjust Coil Tine & Hydraulic Lift Roller Hyd. Adjust Coil Tine & Hydraulic Lift Roller Equipment Options - - - - - - - - - -
12 ft 16 ft 20 ft 24 ft 28 ft 31 ft 36 ft 41 ft Folding 41 ft Bi-Folding 50 ft
Model & Size 12 ft Front row(s) ground engaging equipment (description) Wavy Coulters (8 or 13 Wave) Front row(s) ground engaging equipment (quantity) 2 Front row(s) equipment quantity 14 Front row(s) equipment mount 1 5/8in Coil-Tech II Blade Mounts Equipment spacing, in (mm) 5 in (127 mm) Equipment size, in (mm) 22 in (558.8 mm) Angle - Bearings Double Tapered Roller Bearing
Model & Size 12 ft Rear row(s) ground engaging equipment (description) Wavy Coulters (8 or 13 Wave) Rear row(s) ground engaging equipment (quantity) 2 Rear row(s) equipment quantity 15 Rear row(s) equipment mount 1 5/8in Coil-Tech II Blade Mounts Equipment spacing, in (mm) 5 in (127 mm) Equipment size, in (mm) 22 in (558.8 m) Angle - Bearings Double Tapered Roller Bearings
Model & Size 12 ft Transport wheel mounting 6-bolt Transport tires 11L x 15 “F” Tires Wing wheel mounting N/A Wing tires N/A Gauge wheel mounting N/A Guage wheel tires N/A
Model & Size 12 ft Hookup to tractor, mounted or pull-type Category 3 or Category 4 Hitch
Model & Size 12 ft Typical operating depth, in (mm) 0-4 in (0-101.6 mm) Operating speed (mph) 8-12 mph Depth control Single point depth control Fore/aft leveling -
Model & Size 12 ft Required power, hp (kw) 144 hp (107.38 kW) Remote Hydraulic Values required 2 Hydraulic Pressure -
Model & Size 12 ft Option 1 Coil Tine & Single 14” Roller Option 2 Hydraulic Adjust Coil Tine & Manual 14" Roller Option 3 Manual Coil Tine & Hydraulic Lift Roller Option 4 Hyd. Adjust Coil Tine & Hydraulic Lift Roller Equipment Options -
